Overview

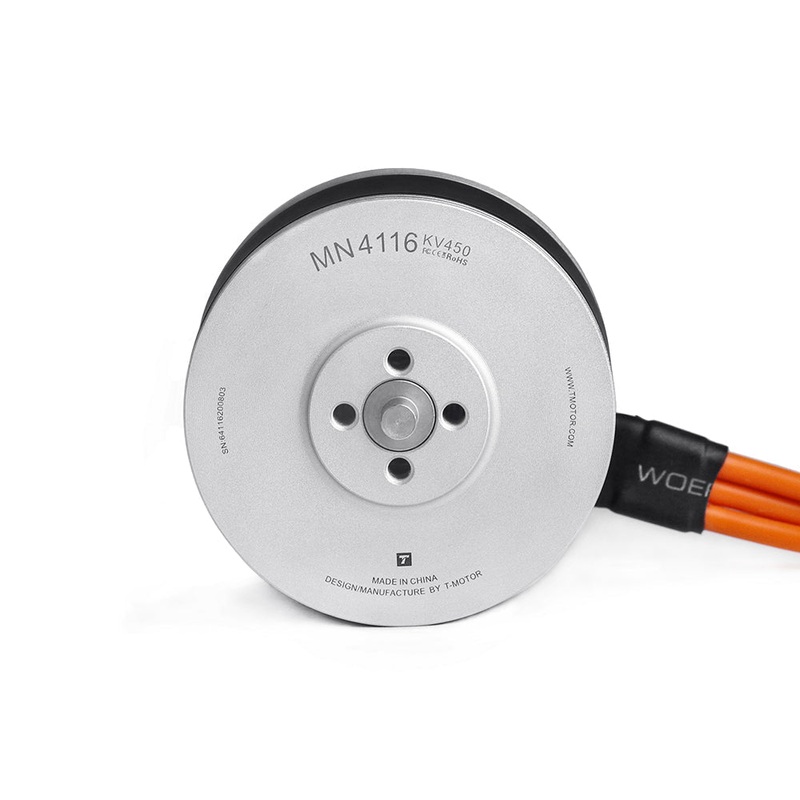

T-Motor MN4116 Navigator is a UAV Motor offered in KV340 or KV450 versions for multi-rotors, VTOL, and fixed-wing UAV applications. It uses an optimized airflow channel design to increase heat flux by 18% for improved cooling and reliable endurance, and it is positioned for general uses such as aerial photography.
Key Features
- For demand of multi-rotors, VTOL and fixed wings
- Remarkable cooling and long endurance: heat flux increases by 18%
- High-performance iron core material, high slot rate, and reduced heat generation for long-lasting flight
- Efficiency goes up to 8 g/W on 60% throttle
- Fast response and stable operation: 12N14P configuration, high winding coefficient, and small harmonic wave
- Max. thrust: 5.1 kg
- MTBF: 1000 hours
- Industrial grade build: waterproof, dustproof, low noise, 220 C high temperature resistance
- Performance notes: 5% more efficient on 1 kg-2.5 kg; 5% more thrust on 100% throttle
Specifications
| Brand | T-Motor |
| Series | Navigator |
| Model | MN4116 |
| KV Options | KV340 / KV450 |
| Max. Thrust | 5.1 kg |
| Efficiency | Up to 8 g/W on 60% throttle |
| Cooling | Heat flux increases by 18% |
| Configuration | 12N14P |
| MTBF | 1000 hours |
| Temperature Resistance | 220 C |
| Build Features | Industrial grade; waterproof; dustproof; low noise |
| Additional Performance Notes | 5% more efficient on 1 kg-2.5 kg; 5% more thrust on 100% throttle; high winding coefficient; small harmonic wave |
For compatibility checks or order support, contact [email protected] or visit https://rcdrone.top/.
Whats Included
- 1x T-MOTOR MN4116 Motor (KV340 or KV450, as selected)
- 1x Hardware pack
Applications
- Multi-rotors
- VTOL
- Fixed-wing UAVs (U7 prop adapter available separately)
- General aerial photography use cases
Matching Guide
- T-MOTOR T16*8 Prop
- FLAME 60A 12S ESC 12S
Additional contact provided by manufacturer: [email protected].
Details
The T-Motor MN4116 KV450 multifunctional brushless motor is suited to multirotors, VTOL setups, and fixed-wing builds.
T-Motor setup supports both fixed-wing and multi-rotor working conditions, with a U7 prop adapter available separately.
The vented base and airflow channel design help improve heat dissipation during sustained flights.
T-Motor uses a 12N14P configuration with a high winding coefficient and small harmonic wave for stable, responsive flight behavior.
