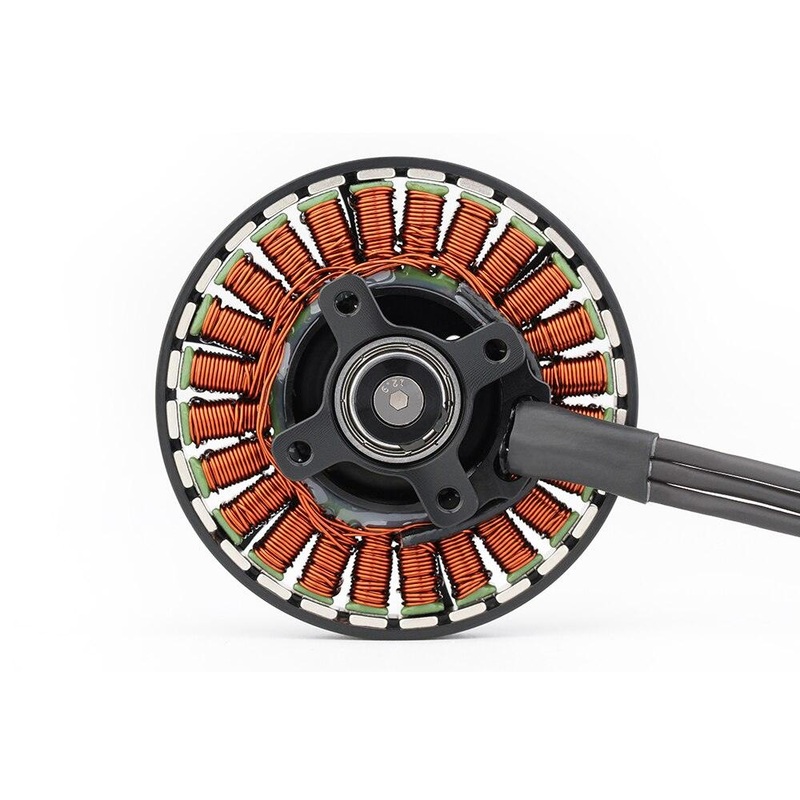

T-motor MN5006 KV300 KV450 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN5006

Material: Metal

Brand Name: T-MOTOR

MOTOR MN5OO6 KV:300 MADE IN CHINA FeX(RoHS 0.8-lkg 1089 3.2Kg Recommended thrust Weight Thrust at full throttle per motor .

Features a flight time of up to 60 minutes, reliable performance for various surveying applications, and includes an NS18*6 22Ah battery that enables stable hovering in windless conditions.

Maximum thrust reaches 3.2 kg, offering agile maneuverability through ample power reserves that enable rapid acceleration and swift braking for precise control.

The antigravity motor features exceptional performance, making it an ideal aid in emergency rescue situations. Moreover, its brushless design ensures efficient operation, as evidenced by the fact that the motor temperature remains remarkably low at only 82C after working with a load of 60A for 10 minutes.

High-quality silicone steel sheets with advanced magnetohydraulic conductivity, combined with improved lamination technology, enable optimal energy efficiency and enhanced propulsion.

EMOTOR T-MOTOR stold Kubou MDINSOOC, KV %oo 14-18inch 18inch Integrated Foldable Prop .

The specifications for this motor include:* Motor size: 55.6mm x 30mm* Stator core made from imported silicon steel sheet, treated with anti-rust coating* High-temperature resistant coatings: 180F (82C)* Configuration: 24N28P* Shaft diameter: 6mm* Bearing: Imported 696ZZ bearing* Magnet level: 150C high temperature resistance, Level E* Lead cable length: 60mm* Copper wire used in the construction of the motor

300 Rated Voltage ( Lipo) 4-65 Idle Current 22v . 0.6A ESC Recommendation AIR 40A Peak Current 180s 20A Propeller . recommendation P17-18″ Max. Power 80s Soow Motor Weight ( Incl. Cable) 106g Internab Resistance 60mn Package Weight 1708 170g
