Overview

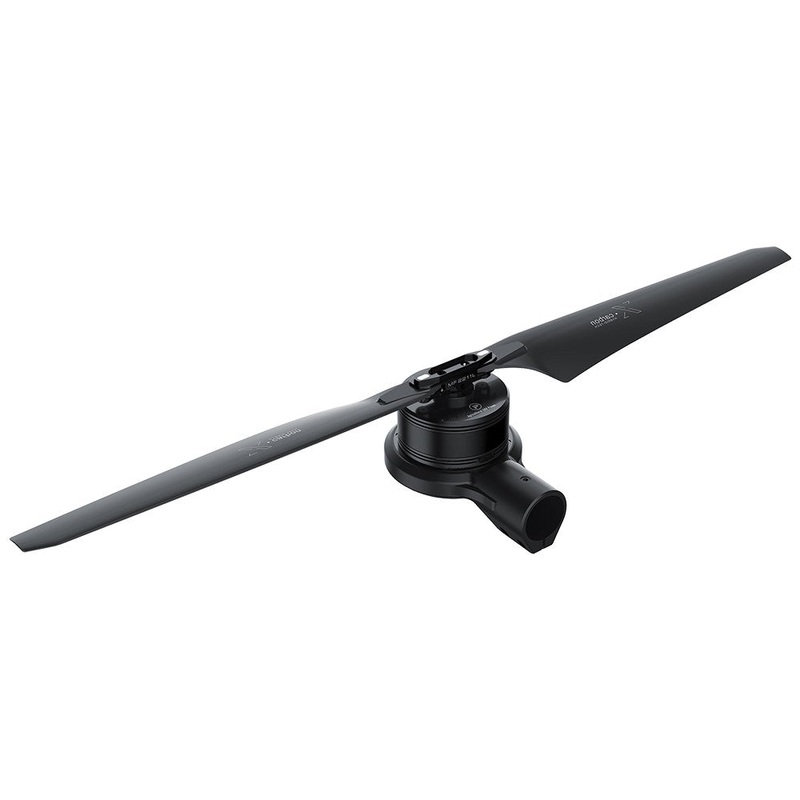

This UAV motor integrated propulsion system is the T-Motor P60-X Combo Pack (X-Agricultural arm set series) designed for agricultural drones, combining motor, FOC (sine wave) ESC, and X-carbon polymer folding propeller into one arm module for fast installation.
Key Features
- Turn-key system with integrated motor + FOC ESC + propeller
- Fast and convenient; free of complicated mounting process
- FOC (sine wave) ESCs are the default match for the arm sets; intelligent algorithm provides efficient, accurate, stable motor control
- X-carbon patent polymer folding prop series (high RPM, high efficiency, strong power); X-carbon props are the default match
- Built-in LED light for better visibility and maneuverability at night
- Tube size note: 30mm and 25mm tube sizes are for P60-X with an adapter ring
For integration and compatibility questions (ESC/prop matching, tube size selection, wiring length), contact [email protected] or visit https://rcdrone.top/.
Specifications
| Product Model | E60-SKV170 |
| KV | 170KV |
| Exposed wire length | 600mm |
| Arm size | 130*86.2*78.5mm |
| Boom weight (incl. wire) | 570g |
| Configu ration | 24N28P |
| Shaft Diameter | IN:6mm |
| Idle Current (24V) | 1.2A |
| Rated Voltage (Lipo) | 6-12S |
| Internal Resistance | 80m |
| IP | / |
| Peak Current (180s) | 38A |
| ESC | FLAME 60A 12S |
| Max Power (180S) | 1800W |
| Propeller Recommendation | MF2211 |
| Propeller (shown for P60-X) | Polymer Folding Propeller 22″ |
| ESC (shown for P60-X) | Flame 60A 12S; Flame 70A 6S |
| Technical drawing dimensions (shown) | 66.1 mm; 50 mm; 36.7 mm; 18.4 mm; 30 mm; 28.4 mm; 22.6 mm; 6-M3 |
Applications
- Agricultural drones
Details
The T-Motor X-agricultural arm set integrates the motor, ESC, and carbon prop into one assembly for a cleaner drone build.
T-Motor P60-X and P80-X propulsion units pair P60/P80 motors with matching ESC options and polymer folding propellers.
The T-Motor ALPHA 80A FOC ESC uses a finned heatsink and a clean lead layout for easier integration into arm-set builds.
T-Motors X-carbon folding propeller blade features a clean matte finish with X-carbon hybrid-tech branding.
The built-in LED light improves visibility and helps with maneuverability during low-light or night flights.
The T-Motor carbon fiber propeller mounts to a clamp-style motor bracket with included screws for a straightforward install.
T-Motors dimensioned outline with a 50 mm body, 66.1 mm overall height, and 6-M3 mounting pattern helps you plan fitment and mounting holes accurately.
