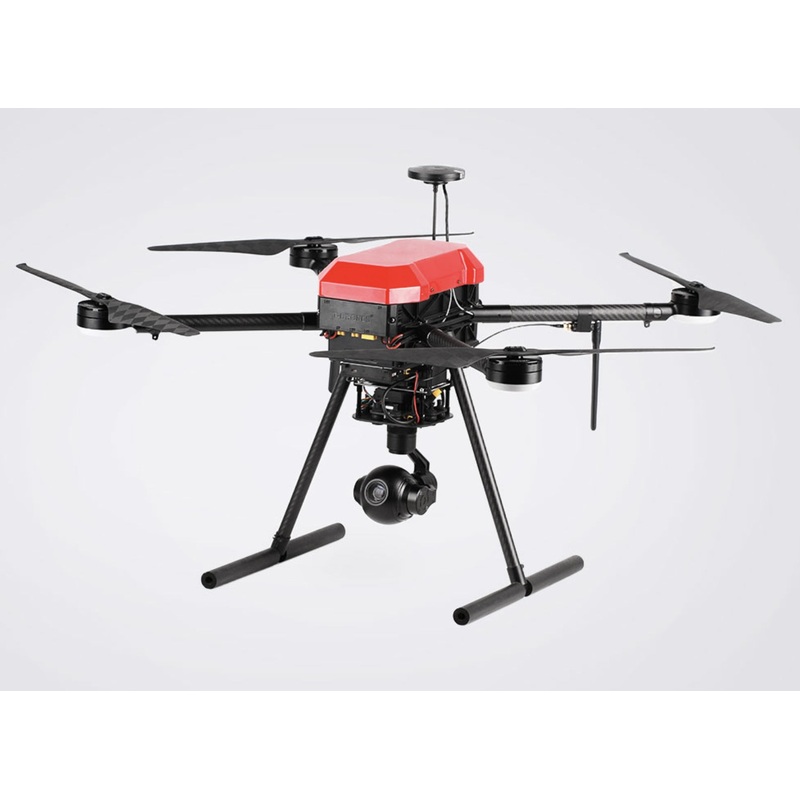

T-Motor M690B Drone Overview
The T-Motor T-Drone M690B drone is an industrial-grade drone designed for professional applications. It boasts a699mm wheelbase, 1-hour endurance with a 2KG payload, and weighs only 1.86KG without the battery, making it highly portable and easy to deploy. Its maximum takeoff weight of 5.8KG, coupled with a 15m/s horizontal flight speed and GPS hover accuracy of 0.5m vertically and 2.5m horizontally, makes it perfect for extended operations in harsh conditions. The M690B is engineered for performance, durability, and versatility, catering to industries like mapping, inspections, and security surveillance.
T-Drone M690B Specs
| TECHNICAL PARAMETER | |
|---|---|
| Model | M690B |
| Wheelbase | 699mm |
| Weight of Drone (Without Battery) | 1.86KG |
| Weight of Drone (With Battery) | 3.8KG |
| Weight of Battery | 1.94KG(ARES 6S 22AH Battery* 1PC orSmart Battery 6s 22AH*1PC) |
| Max Take-off Weight | 5.8KG |
| Maximum Ascent Speed | 5m/s |
| Maximum Descending Speed | 3m/s |
| Maximum Horizontal Flight Speed | 15m/s |
| GPS Hover Accuracy | Vertical:0.5m; Horizontal:2.5m |
| Hover Time | 1kg55mins 1.5kg48mins |
| Maximum Tolerable Wind Speed | 12m/s |
| Working Temperature | -15~50 |
| Propulsion System | T-MOTOR |
| Control System | PIXHAWK |
| Dimensions (Unfolded) | 570mm*570mm*475mm |
| Packing Size | 530mm*240mm*245mm |
| Shipping Weight | 3.25kg |
M690B Drone Features:
Lightweight & Durable Design
The M690B drone is made from high-strength aviation aluminum with a hollow extrusion body, reducing weight while maintaining superior strength. Its compact size ensures portability for various field operations.
Long-Endurance & High Payload Capacity
Supporting payloads between 1-2KG, the drone achieves a flight time of up to 1 hour, ideal for industrial applications like mapping, surveillance, and data collection.
Smart Battery Options
The drone can operate with either a Smart Battery or ARES 6S 22AH battery, providing high energy density and flight safety for longer operations.
Customizable Payload Options
Equipped with a flexible connector and multiple power interfaces, the M690B supports a variety of payloads, such as thermal cameras, searchlights, and winch systems, adapting to different mission requirements.
Advanced Power & Propulsion System
Powered by T-MOTORs propulsion system, the drone is optimized for efficiency, reliability, and extended flight times, ensuring stable performance even in challenging environments.
Secondary Development & Customization
Designed for flexibility, the M690B Drone supports secondary development, allowing for customized modifications such as different landing gear types and enhanced GPS signal capabilities.
The T-Motor M690B Drone is the perfect solution for industries requiring a versatile, high-performance drone capable of handling complex industrial tasks with ease.
M690B Drone Details
The T-Motor T-Drone M690B is a compact industrial drone that carries a 2kg payload and has an endurance of 1 hour.
The T-Motor T-Drone M690B focuses on industrial applications in a wide range of fields with its comprehensive performance. Its features include small size, lightweight, portability and diversified customization capabilities for better user experience.
Lightweight design features hollowed-out construction using high-strength aviation aluminum, resulting in increased durability, reduced weight, and compact size.
The T-Motor T-Drone M690B is a compact industrial drone that can carry up to 2kg of payload and has an endurance of 1 hour.
Compact industrial drone with 2kg payload and 1 hour endurance. Features 167 smart battery for safe and efficient operation.
The T-Motor T-Drone M690B is an advanced power leader in security, offering trusted choice. Optimized for efficiency, reliability, and weight, it provides longer flight times, stability, and safety.
The M690B drone features a 2kg payload capacity, 1 hour endurance, and compact design. It comes with a flexible connector, gimbal sharing device, and multiple power supply interfaces for various applications, including thermal camera, laser, night vision, cargo box, winch system, and searchlight.
The M690B is equipped with strong secondary development capabilities to cater to diverse customer needs. Protection features include enhanced signal choices, three types of landing gears for improved safety, folding and quick-detachable props, and multiple prop options for time-saving operation and better environmental requirements.
