Overview
The T-Motor U15L Combo Pack combines a U15L KV43 motor, Thunder 300A 24S ESC, and 47*18 carbon fiber propeller for heavy lift drone UAV propulsion builds. The product image states 63 kg max. thrust and 50-100 V voltage.
Key Features
- Big Power
- Matched propulsion solution
- Stable, reliable, safe
- Max. Thrust: 63 kg (stated on product image)
- Voltage: 50-100 V (stated on product image)
For ordering support and compatibility confirmation for frames, batteries, and connectors, contact [email protected] or visit https://rcdrone.top/.
Specifications

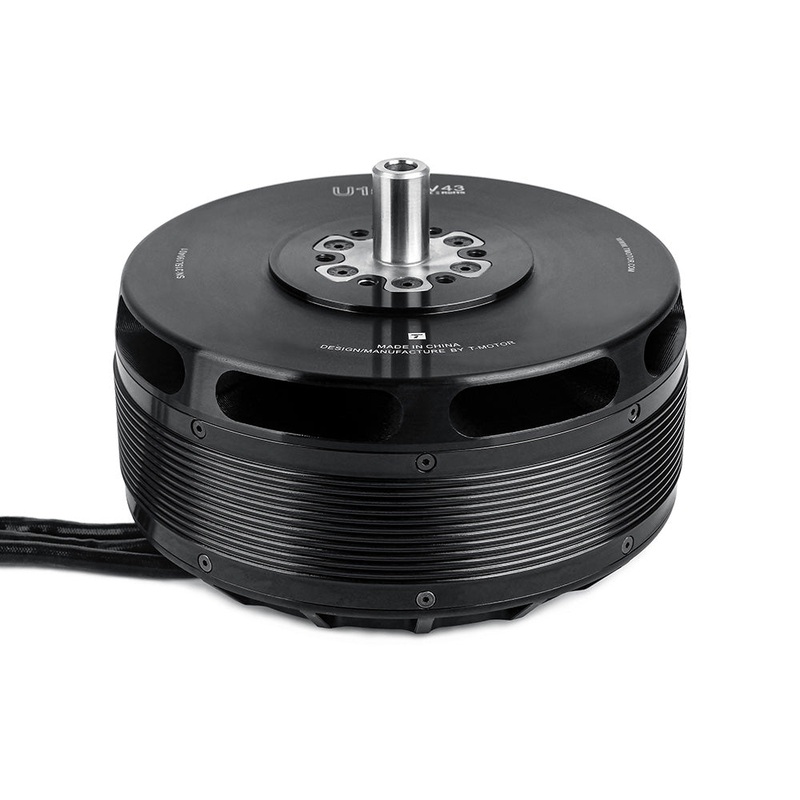

Motor (U15L KV43)
| Motor Item | U15L KV43 |
| Weight (Incl. Cable) | 3600g |
| Motor Dimensions | 151.5*86mm |
| Internal Resistance | 20m |
| Lead | Enameled Wire200mm |
| Configuration | 36N42P |
| Shaft Diameter | 25mm |
| Rated Voltage(LiPo) | 24S |
| Idle Current(10V) | 4.0A |
| Peak Current(120s) | 135A |
| Rated Power | 2800W |
ESC (Thunder 300A 24S)
| ESC Item | thunder 300A 24S |
| Weight(Incl. cables) | 870g |
| Size | 154.9*69.6*48.9mm |
| Programable Item(s) | No |
| Support Voltage | 14-24S |
| Con. Current | 240A |
| Peak Current(10S) | 300A |
Propeller
| Model NO. | 47*18 |
| Weight(Single Blade) | 32020g |
| Material | CF+Epoxy |
| Suface Treatment | Glossy |
| T-MOTOR Series | 2blades-intergrated |
Applications
- Heavy lift drone UAV propulsion systems
- Industrial multi-rotor platforms requiring a matched motor + ESC + propeller set
Details
T-Motor carbon fiber propeller system is rated for up to 63 kg max thrust and supports 50100 V operation.
Mounting hole patterns and overall dimensions help you confirm fitment before installation.
