Overview
The T-Motor V120A 24S is a UAV ESC (FOC ESC) designed for fast response, efficient driving, accurate control, and low-noise operation. It supports 12~24S (Max 105V) input and provides PWM/CAN control for UAV power systems.
Key Features
- Fast response
- Efficient driving
- Accurate control
- Low-noise operation
- Protocols: PWM/CAN
- No BEC
For order support, shipping questions, or compatibility checks, contact [email protected] or visit https://rcdrone.top/.
Specifications
| Model No. | V120A 24S |
| Support Voltage | 12~24S (Max 105V) |
| Continuous Current | 65A |
| Peak Current (<10s) | 135A |
| Protocol | PWM/CAN |
| BEC | NO |
| Throttle Pos. Range | 1040~1940 |
| Throttle Refresh Frequency | 50~500Hz |
| Throttle Response Speed | 300ms |
| Standby Consumption | 50mA@100V |
| Size | 133*62*38mm (L*W*H) |
| Weight (Incl. Cables) | 460.5g |
| ESC Weight | 307g (Excl. Cable) / 460.5g |
| Input Cable | Silicone Wire-Red/Black-12AWG-1200mm |
| Output Cable | Silicone Wire-Orange-12AWG-250mm |
| Signal Cable | Shielded Cables-Black-OD4.2-5C-500mm-JP-3P*2-Black Blank White-Green Yellow Gray |
| Encoder Cables | Shielded Cables-Black-24AWG-5C-460mm-M6 Aviation Connector |
Recommendation
- Motor: V13L
- ESC: V120A 24S
- Propeller: G36
Whats Included
- Packaging Box 1
- V120A 24S 1
Downloads
- V120A 24S-en.pdf
- V120A 24S.zip
- TM_UAVCAN_V2.3 CAN Communication Protocol.pdf
- TM_User Manual V.1.0.2.pdf
- TM-LINK_V3.0.zip
Details

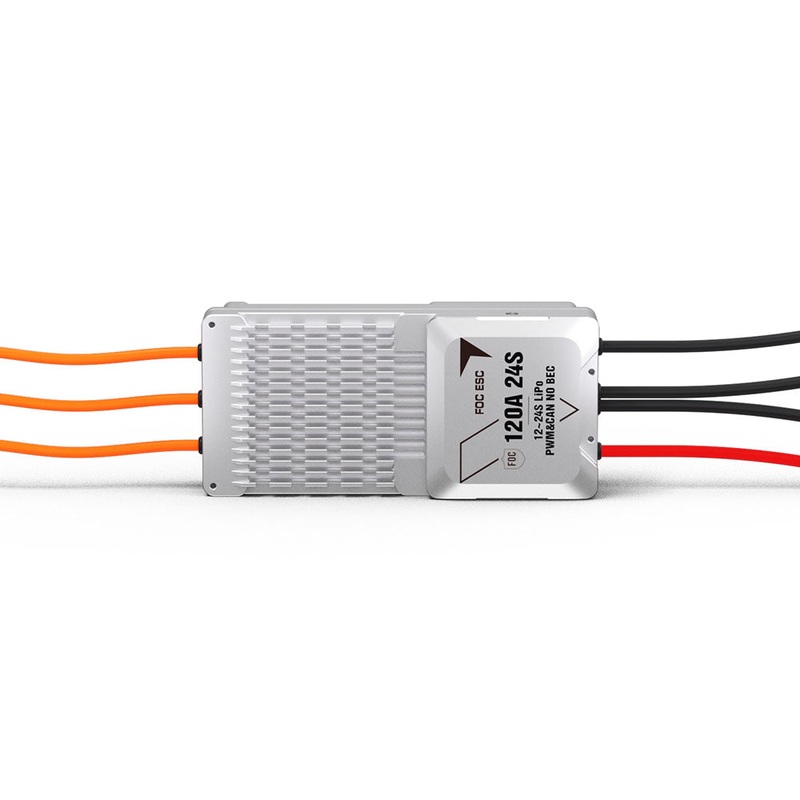

The V120A FOC ESC features a finned heatsink body and clear labeling for 120A 24S operation with PWM/CAN control and no BEC.
The T-Motor V120A 24S UAV ESC comes with a controller module and a packaging box for storage and transport.
