Overview

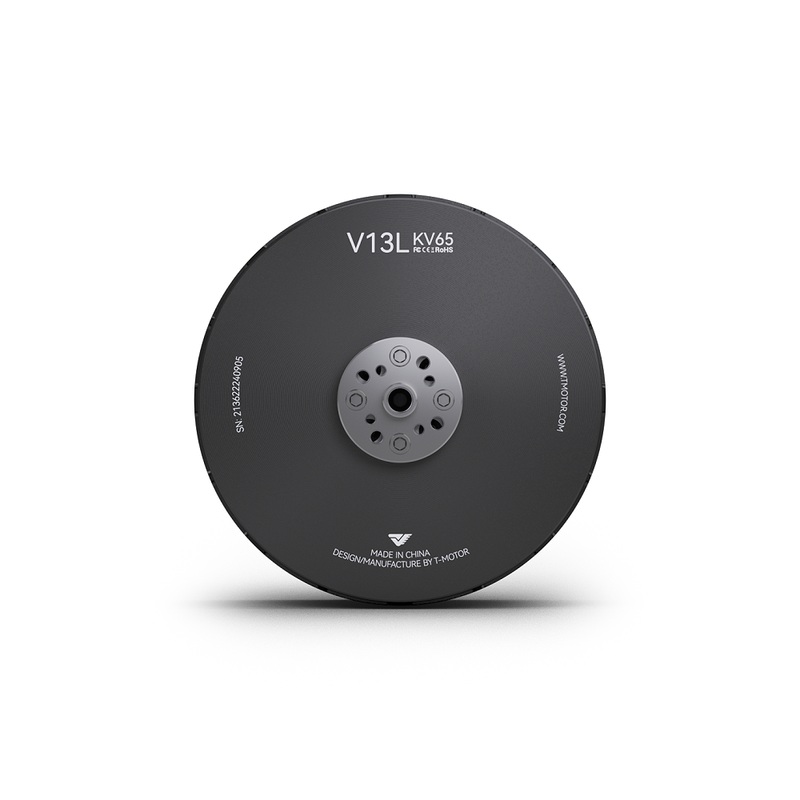

The T-Motor V13L KV65 is a 24S brushless drone motor designed for big payload VTOL use. Key design notes include more redundancy, a large pulling-to-weight ratio, overload capacity, and strong environmental adaptability. Max. thrust is 55kg, with rated thrust of 25kg.
Key Features
- Lightweight and compact design: motor weight 1.68kg (1680g, including cable)
- High-temperature component optimization: special high-temperature-resistant enameled wire and UH high temperature magnet (enhances passive heat resistance)
- Patented design for faster cooling: cooling tooth structure with a centrifugal fan to improve active cooling capacity; anti-overload time increased by 30s
- Ingress protection level: IPX5
- Patent number: ZL202121633594.1
For compatibility and setup support (ESC matching, prop selection, and integration questions), contact [email protected] or visit https://rcdrone.top/.
Specifications
| KV | 65 |
| Motor size | Dia. 144.2 x 78.1mm |
| Shaft Diameter | IN20 OUT12 |
| Motor Weight (Incl. Cable) | 1680g |
| Idle Current (20V) | 3A |
| Configuration | 42N38P |
| Internal Resistance | 262m |
| Lead Spec | Enamelled wire, straight out 150mm |
| Ingress Protection Level | IPX5 |
| Rated Voltage (Lipo) | 24S, Max. 104V |
| Peak Current (15s) | 190A |
| Max. Continuous Power | 6000W |
| Propeller Recommendation | VZ42*16.5″ |
| ESC Recommendation | THUNDER 200A 24S |
| Max. Thrust | 55kg |
| Rated Thrust | 25kg |
Whats Included
- Motor*1
- Parts Bag*1
Applications
- Sterical logistics
- Emergency rescue without relay
- Plant protection powing
- Aerial survey and photography
Details
T-Motor V13L KV65 motor is designed for big-payload VTOL setups and lists a maximum thrust of 55 kg.
T-Motors compact motor design lists a 1.68 kg motor weight with up to 55 kg max thrust and 25 kg rated thrust.
T-Motor uses high-temperature-resistant enameled wire and magnets plus a centrifugal fan cooling structure to improve heat handling.
T-Motor drones are commonly used for logistics, emergency rescue, plant protection, aerial survey and photography, and firefighting support.
T-Motor dimension drawing details a 78.1 mm body length with 144.2 mm outer diameter and 4M6 (50) mounting pattern for fit checks.
The T-Motor V13L KV65 motor comes with a mounting plate and a set of screws for straightforward installation.
