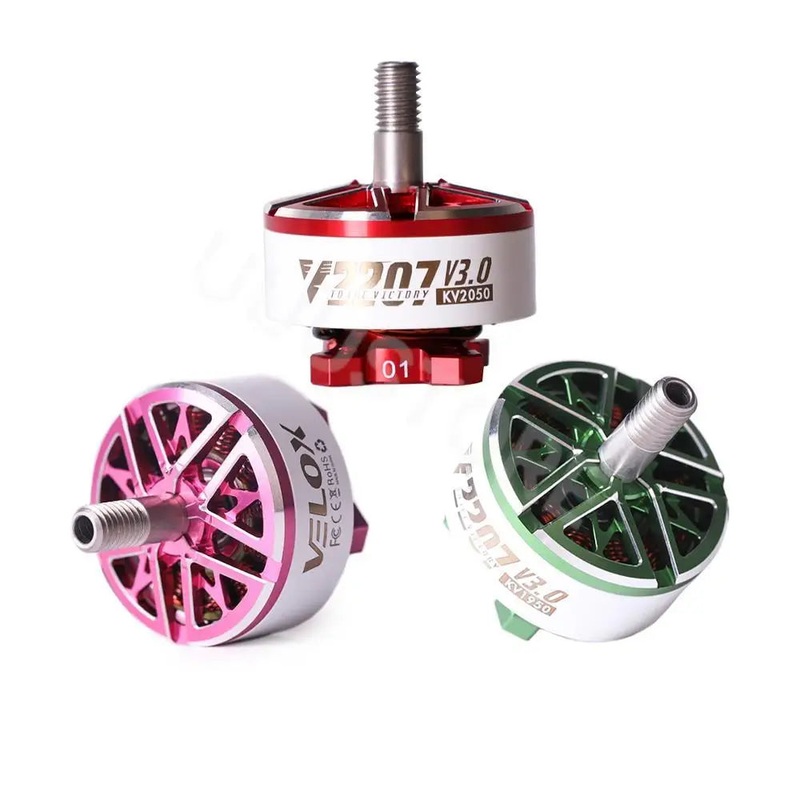

T-Motor Velox V2207 V3 / V2306 V3 1750KV 1950KV 2550KV Brushless Motor for 5 Inch FPV Racing Freestyle Drones 4pcs 2207 v3 2050kv

Overview

The T-Motor Velox V2207 V3 and V2306 V3 series motors are precision-engineered for FPV racing and freestyle pilots seeking performance. durability. and smooth power output. These motors come in 1750KV and 1950KV options for 6S LiPo. and 2550KV for 4S. providing flexibility for aggressive racing or flowing freestyle flights.

Both motor series use high-efficiency 12N14P configurations with M5 output shafts and are built with robust materials to ensure consistent performance under demanding conditions.

Model Variants

V2207 V3

• 1750KV (6S. 814.3W Max Power. 1370.9g Thrust @ 100%)

• 1950KV (6S. 1050.5W Max Power. 1582.0g Thrust @ 100%)

• 2050KV (6S. 1153.4W Max Power. 1634.3g Thrust @ 100%)

• 2550KV (4S. 642.5W Max Power. 1191.8g Thrust @ 100%)

V2306 V3

• 1750KV (6S. 820.7W Max Power. 1353.1g Thrust @ 100%)

• 1950KV (6S. 976W Max Power. 1466.9g Thrust @ 100%)

• 2550KV (4S. 533.7W Max Power. 1087.0g Thrust @ 100%)

Key Specifications

Model	KV	Voltage	Max Power (W)	Peak Current (A)	Weight (g)	Shaft
V2207 V3	1750KV	6S	814.3	34.6	37.3	M5
	1950KV	6S	1050.5	45.0	37.1	M5
	2050KV	6S	1153.4	49.5	36.8	M5
	2550KV	4S	642.5	41.8	36.5	M5
V2306 V3	1750KV	6S	820.7	34.9	33.8	M5
	1950KV	6S	976.0	41.7	33.7	M5
	2550KV	4S	533.7	34.5	32.6	M5

Performance Test (with T-Motor P4943-6-3 Propeller)

• V2207 1950KV: 1582g thrust. 925.9W power @100%. 1.71 g/W efficiency

• V2306 1950KV: 1466.9g thrust. 863.9W power @100%. 1.70 g/W efficiency

• V2207 2550KV: 1191.8g thrust. 586.4W power @100%. 2.03 g/W efficiency

• V2306 2550KV: 1087.0g thrust. 502.2W power @100%. 2.16 g/W efficiency

Application

Ideal for 5-inch FPV drones. these motors are optimized for racing. freestyle. and cinematic flight. Choose lower KV (1750KV) for smooth. efficient flying and higher KV (2550KV) for aggressive racing and explosive throttle response.

Package Includes

• 1x T-Motor Velox V2207 V3 or V2306 V3 Brushless Motor

• Mounting screws and accessories

V2207 V3.0 motor for cinematic freestyle flight. strong explosive speed. 4S voltage. better linearity. KV options: 1750. 1950. 2050. 2550. Designed for pilots to challenge limits and fly freely.

V2207 V3 motor specifications include 1750KV. 1950KV. 2050KV. and 2550KV options. Features 12N14P configuration. 4mm input. 5mm output shaft. 6S (except 2550KV at 4S) voltage. and varying idle currents. max power. and peak currents.

P2207 V3 test report for T-Motor P49436-3 with 1750KV. 1950KV. 2050KV. and 2550KV types. Data includes throttle. voltage. current. RPM. thrust. power. and efficiency metrics across various settings.

T-Motor T5143S-3 performance data for 1750KV. 1950KV. 2050KV. and 2550KV. Includes RPM. current. power. torque. efficiency. and KV values at various percentages of maximum throttle.

T-Motor T5147-3 performance data at 1750KV. 1950KV. 2050KV. and 2550KV. Includes efficiency percentages. voltage. current. power. torque. RPM. and other metrics for various operating conditions.

V2207 V3 Testing graph for 1750KV motors. Thrust in grams increases with throttle percentage for T-MOTOR models T5143S-3. T5147-3. and P49436-3.

T-Motor 1950KV thrust vs. throttle graph for T5143S-3. T5147-3. and P49436-3 models. Thrust increases with throttle percentage.

Thrust vs. throttle for T-Motor models: T5143S-3 (yellow). T5147-3 (red). and P49436-3 (green). Type: 2050KV.

T-Motor 2550KV thrust vs. throttle graph. T5143S-3. T5147-3. and P49436-3 models compared; thrust increases with throttle.

V2306 V3.0 motor offers enhanced low torque (KV1750). strong power (KV1950). and 4S voltage flight (KV2550). Designed for precise control. acro tricks. and high performance with upgraded materials and design.

V2306 V3 motor specifications include 1750KV. 1950KV. and 2550KV options. Features 12N14P configuration. 4mm input shaft. 5mm output shaft. Weights range from 32.6g to 33.8g. with max power outputs up to 976W.

V2306 V3 test report for T-Motor P49436-3 propeller. Data includes throttle. voltage. current. RPM. thrust. power. and efficiency for 1750KV. 1950KV. and 2550KV types under various conditions.

T-Motor T5143S-3 performance data at 1750KV. 1950KV. and 2550KV. Includes efficiency percentages. voltage. current. power. RPM. torque. and thrust values for various operating conditions.

T-Motor T5147-3 performance data for 1750KV. 1950KV. and 2550KV. Includes efficiency percentages. voltage. current. power. RPM. torque. and temperature values across different load conditions.

V2306 V3 Testing graph for 1750KV motors. Thrust in grams increases with throttle percentage for T-MOTOR models T5143S-3. T5147-3. and P49436-3.

T-Motor 1950KV thrust vs. throttle graph for T5143S-3. T5147-3. and P49436-3 models.

T-Motor 2550KV thrust vs throttle graph for T5143S-3. T5147-3. and P49436-3 models.
