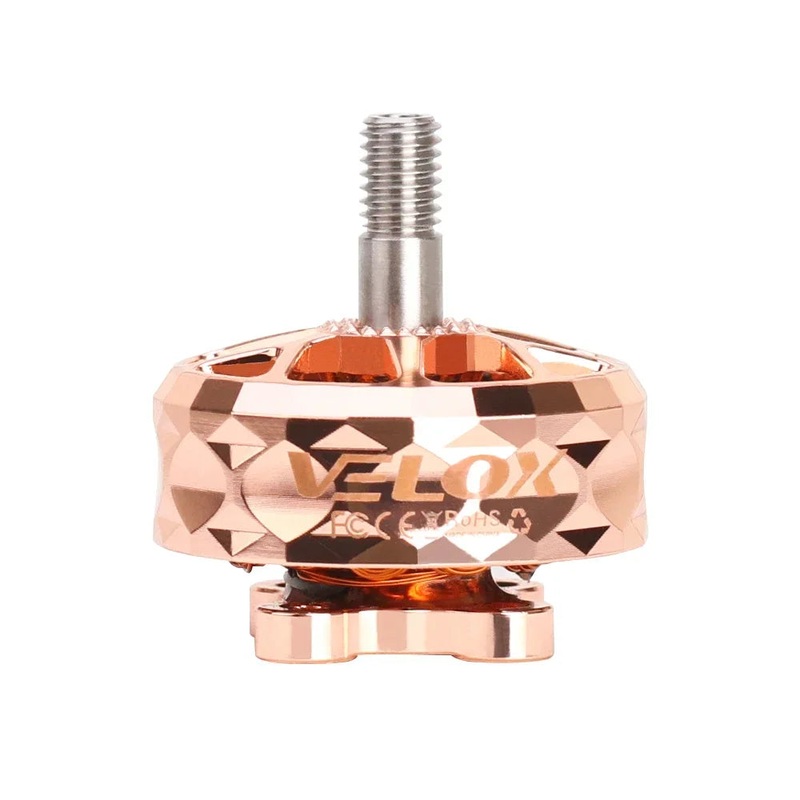

The T-MOTOR VELOX V2307 V2 brushless motor is engineered for 5-inch FPV freestyle drones. offering both explosive performance and refined control. Available in 1950KV for 6S setups and 2550KV for 45S. it delivers responsive power output. smooth throttle control. and robust durability for demanding pilots.
Crafted with high-quality components like a 4mm hollow steel shaft. 12N14P configuration. and 28.630.95mm aluminum alloy housing. this motor supports aggressive freestyle maneuvers while maintaining consistent flight characteristics.
Technical Specifications
| Parameter | 1950KV | 2550KV |
|---|---|---|
| Configuration | 12N14P | 12N14P |
| Internal Resistance | 67m | 41.5m |
| Shaft Diameter | 4mm | 4mm |
| Dimensions (Dia x Len) | 28.6 30.95mm | 28.6 30.95mm |
| Lead | 20AWG. 150mm | 20AWG. 150mm |
| Weight (incl. cable) | 35.1g | 35.5g |
| Weight (excl. cable) | 31.3g | 31.7g |
| Rated Voltage | 6S | 45S |
| Idle Current @10V | 1.35A | 2.1A |
| Peak Current (60s) | 40.4A | 36A |
| Max. Power (60s) | 974W | 534W |
Packaging Contents:
-
1x T-MOTOR VELOX V2307 V2 Motor
-
1x M5 Lock Nut
-
1x Parts Bag (Screws + Spacers)
