Overview

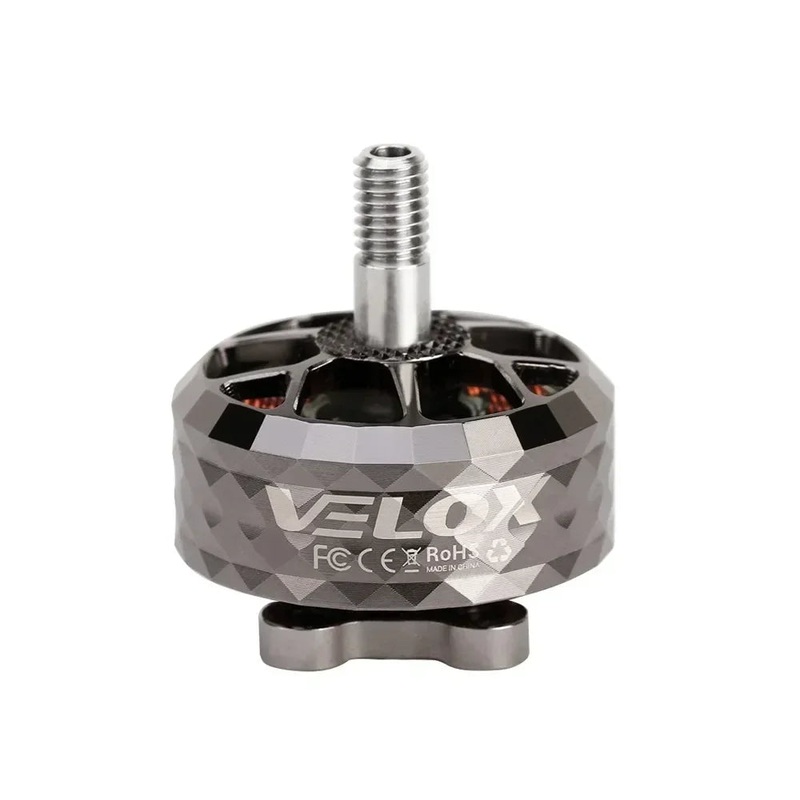

The T-Motor VELOCE V2208 V2 Brushless Motor is purpose-built for 5-inch FPV racing and freestyle drones. offering a perfect balance of power. responsiveness. and efficiency. Available in 1750KV. 1950KV. and 2450KV versions. this motor is compatible with 4S to 6S LiPo batteries and features a robust 4mm titanium alloy shaft for exceptional durability and lightweight performance. The sleek one-piece bell design and vibrant anodized finishes add both functionality and visual flair to your build.
Key Features
-
4mm Titanium Alloy Shaft: Lightweight yet strong. resists bending and wear from crashes.
-
NSK 9x4x4mm Japanese Bearings: High-precision. smooth rotation. extended motor life.
-
N52H Curved Arc Magnets: Increased magnetic flux for enhanced torque and punch.
-
One-Piece Bell Design: Stronger and more impact-resistant structure.
-
Dynamic Balancing: Each motor is precisely balanced for stable and jitter-free performance.
-
Motor Wire Protection: Designed to minimize wear and interference during flight.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VELOCE V2208 V2 |
| KV Rating | 1750KV / 1950KV / 2450KV |
| Configuration | 12N14P |
| Input Voltage | 4S 6S LiPo |
| Shaft Diameter | 4mm (Titanium Alloy) |
| Motor Dimensions | 27.6mm x 31.95mm |
| Weight (w/ Cable) | ~37.2g |
| Wire Spec | 20AWG. 150mm |
| Mounting Pattern | 16x16mm (M3 bolts) |
| Bearings | NSK 9x4x4mm |
Recommended Usage
-
Propeller Compatibility: Optimized for 5-inch FPV propellers
-
Drone Type: 5 freestyle. racing. cinematic builds
-
Use Case: Suitable for both aggressive acrobatics and cinematic cruising
Package Includes
-
1 x T-Motor VELOX V2208 V2 Motor (KV Optional)
VELOCE SERIES: Solid while pretty. New VeloX motors in copper. blue. and black designs.
Velox series motor offers exquisite appearance and excellent performance for pilots to challenge limits and enjoy better flights.
T-Motor has a one-piece bell. titanium shaft. N52 magnet. and lighter weight for durability and power.
T-Motor in three colors. sizes 2306.5-2208. for flying needs.
T-Motor specifications: 12N14P configuration. 27.6*31.95mm dimensions. 4mm shaft. 36.9-37.2g weight. 6S voltage. 796-980W power. 65-52m resistance. 1.35-2.1A idle current. 34.5-43.2A peak current.
Test report for T-Motor propellers T5143S 6S and T5146 6S. Data includes throttle. thrust. voltage. current. RPM. power. efficiency. and operating temperature at various settings. Ambient temperature is 12C.
KV1750 and T5147 6S motor performance data at various throttle percentages. including voltage. current. power. RPM. torque. and efficiency. Ambient temperature: 12C. Motor surface temperature noted at 100% throttle.
T-Motor performance data for T5143S 6S and T5146 6S propellers. Includes throttle. thrust. voltage. current. RPM. power. efficiency. and operating temperature at various settings. Ambient temperature: 12C.
KV1950 T5147 6S and T5150 6S motor performance data at various throttle percentages. including voltage. current. power. RPM. torque. efficiency. and ambient temperature (12C). Motor surface temperature noted at 100% throttle.
T-Motor V2208 V2 performance data for T5143S 4S and T5146 4S propellers includes throttle. thrust. voltage. current. RPM. power. efficiency. and temperature details at various settings. Ambient temp: 12C.
KV2450 T5147 4S and T5150 4S motor performance data at various throttle percentages. including voltage. current. power. RPM. torque. efficiency. and ambient temperature of 12C. Motor surface temperature noted at 100% throttle.
T-Motor Velox contents: Motor x 1. Parts Bag x 1. Verify package completeness before use; contact online support if items are missing.
