Overview

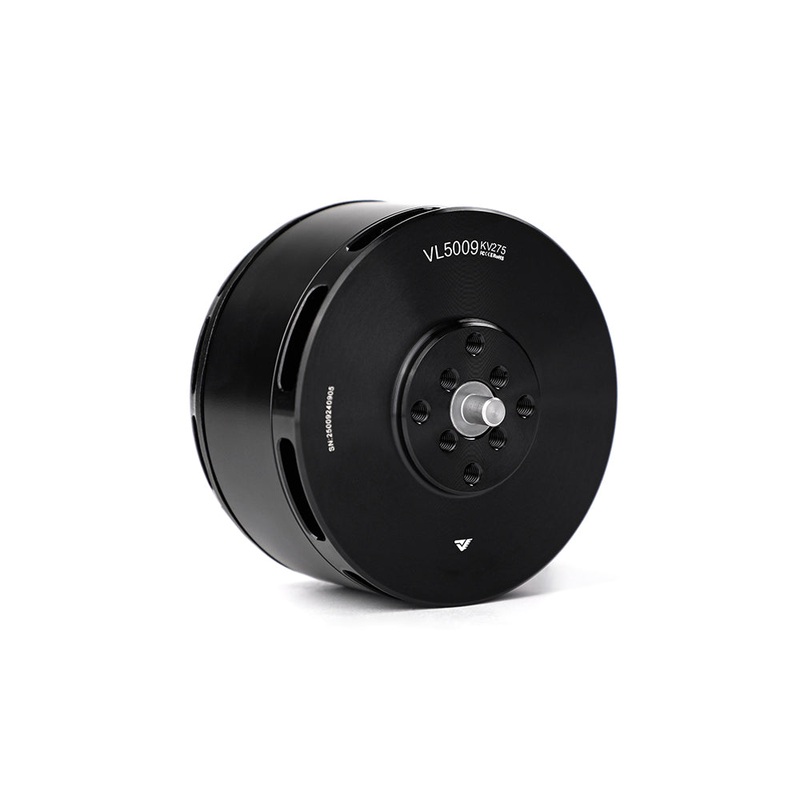

T-Motor VL5009 is a VTOL UAV motor from the VL Series Propulsion System, designed to work with fast and economical 360 custom angle propeller-locking. The system concept uses adaptive electronic propeller-locking to help reduce turbulence from rotor rotation and maintain a stable aerodynamic layout for fixed-wing aircraft, improving flight safety.
For product selection and integration support, contact https://rcdrone.top/ or email [email protected].
Key Features
- 360 custom angle propeller-locking for quick locking (lock the propeller in seconds).
- Adaptive propeller-locking: ESC automatically adjusts current/torque based on external force changes to reduce power consumption and heat for energy saving.
- Recommendation: 12S voltage; 8.5kg max thrust/arm; 12~15kg recommended MTOW (quad).
- V60A ESC label markings: 60A, 12S, PWM & CAN, NO BEC.
Specifications
Motor (VL5009)
| Model No. | VL5009 | KV (RPM/V) | 275 |
| Magnet Level | 180C | Motor Size | 55.6*38.85mm |
| Lead Cable | Silicone wire 16# 600mm | Stator | 150C high temperature-resisting coatings |
| Copper Wire | 240C | Configuration | 18N20P |
| Coil Insulation Test | 1000V/5s | Shaft Diameter | IN: 6 OUT: 4 |
| Rotor Dynamic Balance Standard | 10mg | Bearing | Imported 696 |
| IP | IPX5 | Centrifugal Cooling Design | YES |
| Package Size | 135*104*50mm | Rated Voltage (LiPo) | 12S |
| Idle Current (15V) | 1.1A | Internal Resistance (25C) | 66m |
| Peak Current | 52A | Continuous Power (180s) | 930W |
| Ambient Temperature | -30C to 55C | Max. Thrust | 8.5kg |
| Motor Weight (incl. cable) | 280g |
ESC (V60A)
| Model No. | V60A | Control | PWM/CAN |
| Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN |
| Peak Current (10s) | 60A (Under certain heat dissipation conditions) | Continuous Current | 30A (Under certain heat dissipation conditions) |
| Propeller-locking | Electronic propeller-locking | Standby Consumption | 50mA |
| Throttle Pos. Range | 1100-1940us (fixed) | Throttle Refresh Frequency | 50~500Hz |
| Throttle Response Speed | 300ms | Weight (incl. cables) | 85g |
| Encoder Cables | Shielded cables – Black – 24AWG – 5C – 30010mm – M6 aviation connector | Output Cable | Silicone wire – orange – 16AWG – 6010mm |
| Input Cable | Silicone wire – red/black – 14AWG – 16010mm | Signal Cable | Shielded cables – Black – OD4.2 – 5C – 30010mm – JP-3P*2 – black blank; white/green/yellow/gray |
Propeller (DZ17)
| Model No. | DZ17*6.2 (431.8*157.5mm) | Weight (Single Blade) | 283g |
Whats Included
- VL5009 x1
- Parts Bag x1
Applications
- VTOL fixed-wing UAV propulsion systems requiring propeller-locking
- Multirotor platforms (recommendation: 12~15kg MTOW for quad)
Downloads
- VL5009 3D Diagram
- VL5009 Propulsion System Specifications.pdf
- TM-Link_V2.0 Upper Computer
- TM_UAVCAN_V2.3 CAN Communication
- User Manual
Details
The T-Motor F60A 1S4S ESC features a finned aluminum housing and clearly labeled ports for straightforward drone power wiring.
The T-Motor propeller features a carbon-fiber look with a clean two-blade design for straightforward installation on compatible motors.
The VL5009 motor includes a small parts bag with mounting screws, a washer, and an adapter plate for installation.
