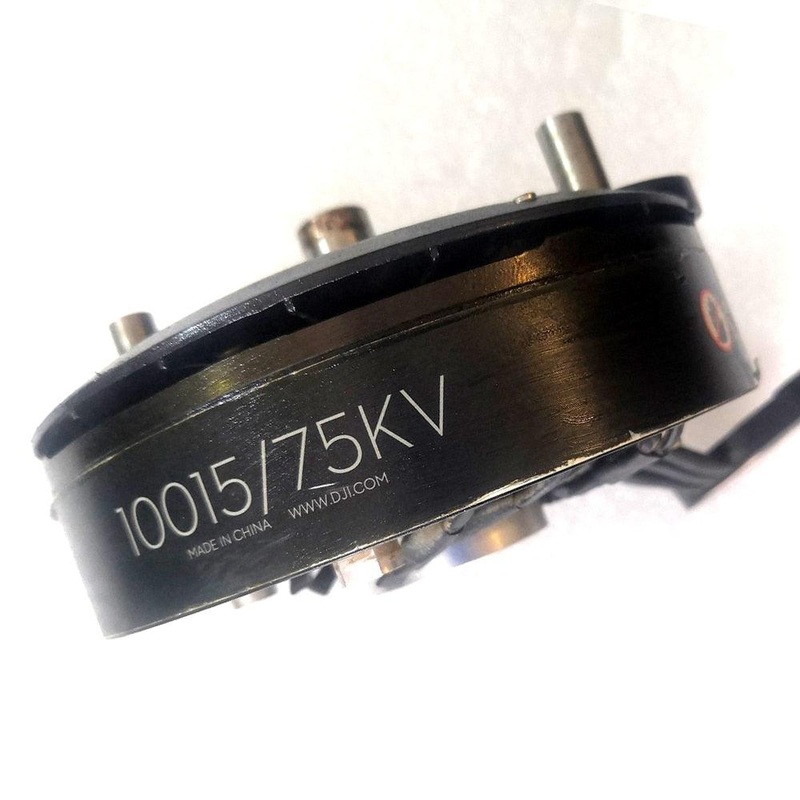

T20(10015) DJI Brushless Motor SPECIFICATIONS

Origin: Mainland China

Model Number: T20

Brand Name: MAXUAV

T20(10015) DJI Brushless Motor 75kv Aircraft Plant Protection UAV T20 Motor Accessories Drone T20 Engine Parts Airplane

Model condition:DJI T30 Drone disassembly motor. all function are good

Model:T20(10015)Stator size:100*15mmMotor Diameter: 150mmMotor height:30mmConfiguration:36N42PWire16# silica gel wire 15mm in lengthProtection gradeIP55kv75kvMotor weight616gNO load current(18v)1AInterphase resistance:22mMax current(180s):100AMax Power(180s):2400WMaximum pulling force:13.5KGBattery:10-14S LipoPOP:3390ESC:FLAME 100A. ALPHA 100A HVFour axis flight parametersStandard takeoff weight39.5kg (16L medicine box)Maximum effective takeoff weight40.5kg (near sea level)

Packing include:

1pc T2010015 brushless motor
