T21 FPV Portable Ground StationSPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Ground Station
Tool Supplies: Battery
Technical parameters: KV1100
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Ground Station
Quantity: 1 pcs
Origin: Mainland China
Model Number: T21 FPV Ground Station
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore

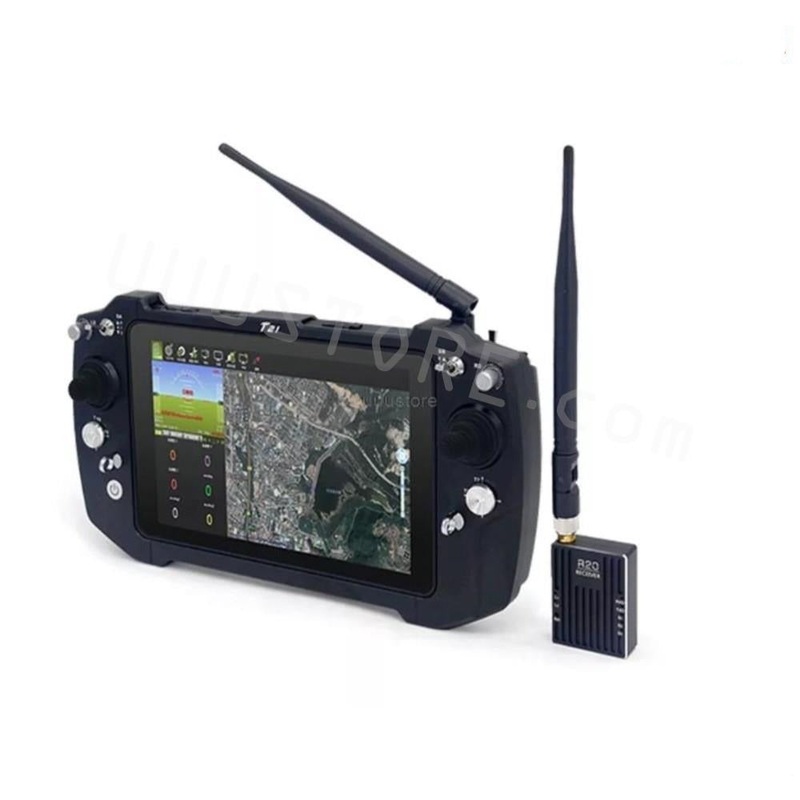

30KM T21 All-in-one Handheld FPV Portable Ground Station 8 inch IPS Dual integrated link P900 900MHZ remote control system
T21 P900 900mhz transmitter:
| Remote controller T21 | |||
| Overall weight | 1000g | Dimension | 300mm*160mm*40mm |
| Operation temperature | “-“&10~+50 | IP rating | IP53 |
| RF power | 0.1-1w(adjustable) | Remote control latency | 30ms |
| Antenna | 2dB rod antenna | Power supply | 3.7V/7500mAh |
| Endurance | 4h | Package dimension | 370mm*285mm*105mm |
| Network | WIFI/bluetooth/4G | Ground unit of video link | External connected |
| Channel | Main Joystick*2 ((left and right handed mode/back to center mode/Hall effect) | ||
| Auxiliary joystick*2 | |||
| 3-position switch*4 | |||
| Knob *2 | |||
| Key button*2 | |||
| Interface | SBus port | Dual SBUS ports with HID input | |
| External interface | USB2.0 | ||
| Charging port | TYPC 5V | ||
| Display Screen | 8 inch | ||
| 1280*720 | |||
| Brightness: 350CCD | |||
| CPU | Intel Cherry Trail Z8350 | ||
| Memory | 2G/4G | ||
| Hard disk | 32G/64G | ||
| Operating system | Win10(standard), Android7.1(optional) | ||
| Touch panel | 10 point capacitive touch screen | ||
| Loudspeaker | Built-in |
R20 Receiver :
| R20 Data link | ||
| Frequency | 900MHz(902-920MHz) | |
| Transmission range | 10Km@LOS condition | Depend on the environment |
| Power voltage | 7.4v-12v | |
| Operation current | 100mA@12v power supply | |
| Operation temperature | -10~+50 | |
| RF power | 0.1w-1w | |
| Antenna | 2dB rod antenna | |
| Weight | 43g(exclude antennas) | |
| Dimension | 53mm*40mm*14mm | |
| Interface | Serial port*1 | |
| SBUS port*2 | ||
| Power input interface*1 | XT30 |
Description
The T21hand-held ground control station is a portableindustrial gradeground computer stationwith independent programmed dual SBus design.
T21 providesfunction such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, real-time video display, etc.
Industrial-grade computer and military grade data link ensures the safety and stability of the flight. Easy operation and transportation.It has been widely used in unmanned aerial vehicle, ground robots, bomb disposal robots, remotely operated vehicles (ROV)and other robotic devices.
