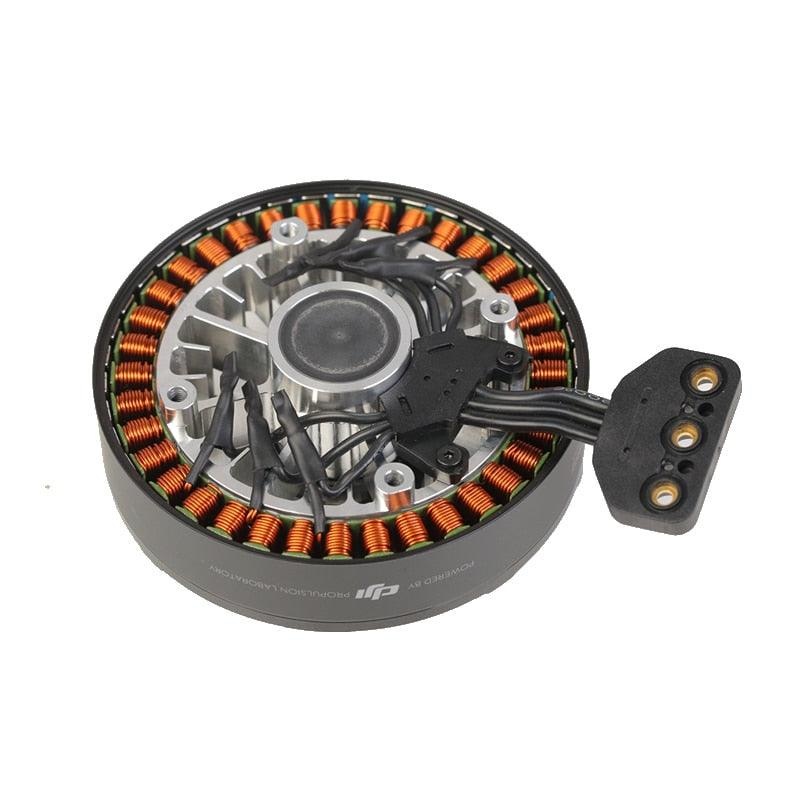

T30(10018) DJI Brushless MotorSPECIFICATIONS
Origin: Mainland China
Model Number: T30
Brand Name: MAXUAV
10018 DJI Brushless Motor 77kv Aircraft Plant Protection UAV T30 Motor Accessories Drone T30 Engine Parts Airplane
Model condition:Used Drone disassembly motor .all the functions could be work well
Model:T30(10018)Stator size:100*18mmMotor Diameter: 150mmMotor height:30mmConfiguration:36N42PWire16# silica gel wire 15mm in lengthProtection gradeIP55kv77kvMotor weight616gNO load current(18v)1AInterphase resistance:22mMax current(180s):100AMax Power(180s):2400WMaximum pulling force:13.5KGBattery:10-14S LipoPOP:3390ESC:FLAME 100A. ALPHA 100A HVFour axis flight parametersStandard takeoff weight39.5kg (16L medicine box)Maximum effective takeoff weight40.5kg (near sea level)
Packing include:
1pc T30 brushless motor
