Product Description:

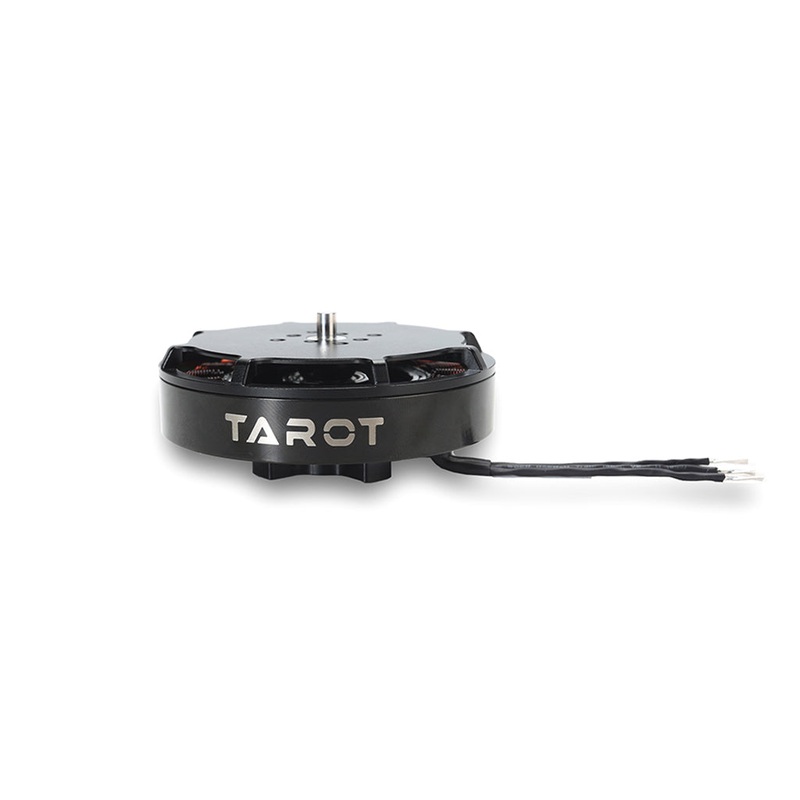

Tarot’s Martin Series 6009/130KV Long Endurance Brushless Motor is designed and built for long endurance multirotors;
Fully CNC machined,with a smooth,non-marking flat profile and excellent balance;
The rotor is made of high magnetic material NdFeB;
Stator with high strength epoxy resin pressurized and reinforced to protect against high temperatures;
High flux outrunner motor with special balancing calibration;
Improved the vibration problem caused by the poor balance of ordinary outboard motors;
Motor shaft is made of high speed alloy steel;
The upper and lower covers of the motor adopt large-size high-speed precision bearings, which have the advantages of low friction torque,low power loss,shock resistance,and strong radial support at instantaneous high speed;
6009/130KV new generation of brushless motors have passed rigorous dynamic,static,magnetic field characteristics,high temperature resistance,demagnetization loss,motion vibration,noise,load performance and other engineering and technical proofs;
Continuing to inherit the Tarot brushless motor:long life,high efficiency,low power consumption,low noise,stable control of the superior characteristics.
Product Parameters:
Support lithium battery section:12S
Props mounting diameter:12mm/15mm/18mm/20mm
Recommended props size: 21-24 inch
Motor peripheral diameter: 66.5mm
Stator Diameter:60mm
Thickness of stator end:9.0mm
Stator ends:18N
Motor poles:20P
Speed per Volt:130RPM/Volt
20V unloaded current:0.3Amps
Motor Length:26.0mm
Motor shaft length:27.4mm
Motor mounting hole distance:25mm
Motor Net Weight:185g
Product Specifications:
Martin 6009/130KV motor 1
Props clamp 1
Cup head screw(M3*8mm) 4
Half-round head screw(M3*8mm) 2
