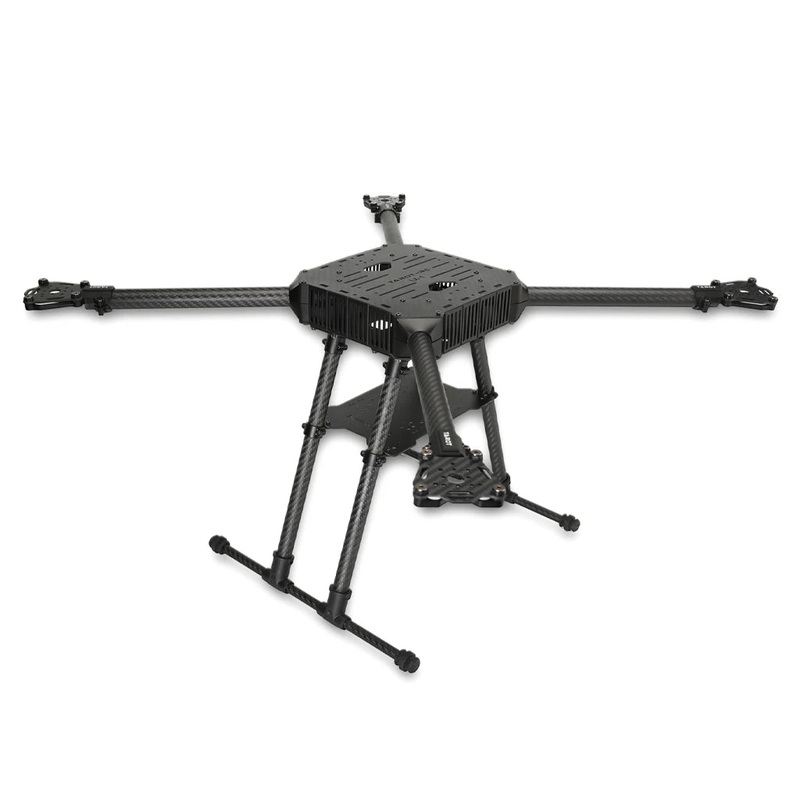

TAROT 680 4-Axle RC Quadcopter Frame Kt TL680A For RC Drone Model

Specifications:

Product Description:
Tarot’s newest 680-wheelbase quadcopter frame with integrated non-folding structure;
Arm joints and leg joints are CNC machined from 6061T6 aluminum alloy;
The fuselage and landing gear are made of carbon fiber;
Battery plate hoop landing gear way tight locking, to realize the overall reliability of the rack;
Extra large center space for easy installation of various electronic devices;
Equipped with shock-absorbing motor mounts to reduce the impact of motor vibration on the center flight control;
Complete frame weighs only 880 grams;

Item Model: TL680A

Aircraft Weight (Unloaded): 1.94 kg

Battery Weight (12000mAh): 1.66 kg (for reference)

Takeoff Weight: 3.6 kg

Wheelbase: 680mm

Max Flight Distance: 4000 meters

Max Flight Height: 3000 meters

Max Wind Resistance: Level 6

Center Plate Dimensions: 170mm x 170mm

Aircraft Height: 324mm

Wing Span (Fully Extended): 1145mm

Flight Modes: Self-stabilization, Altitude Hold, Loiter, One-Key Return

Flight Performance:

Flight Time (Unloaded): Approx. 25 minutes at 15.4A

Flight Time (Loaded):

0.5 kg payload: 25 minutes at 19.4A

1 kg payload: 25 minutes at 22.9A

1.5 kg payload: 24 minutes at 26.6A

2 kg payload: 20 minutes at 30.1A

Package Include:

OnlyTAROT 680Frame Kit

* Please note that flight duration may vary depending on the environmental conditions and battery capacity. Tested under sunny weather at 35C with a wind speed of 2 m/s.
