Product Description:

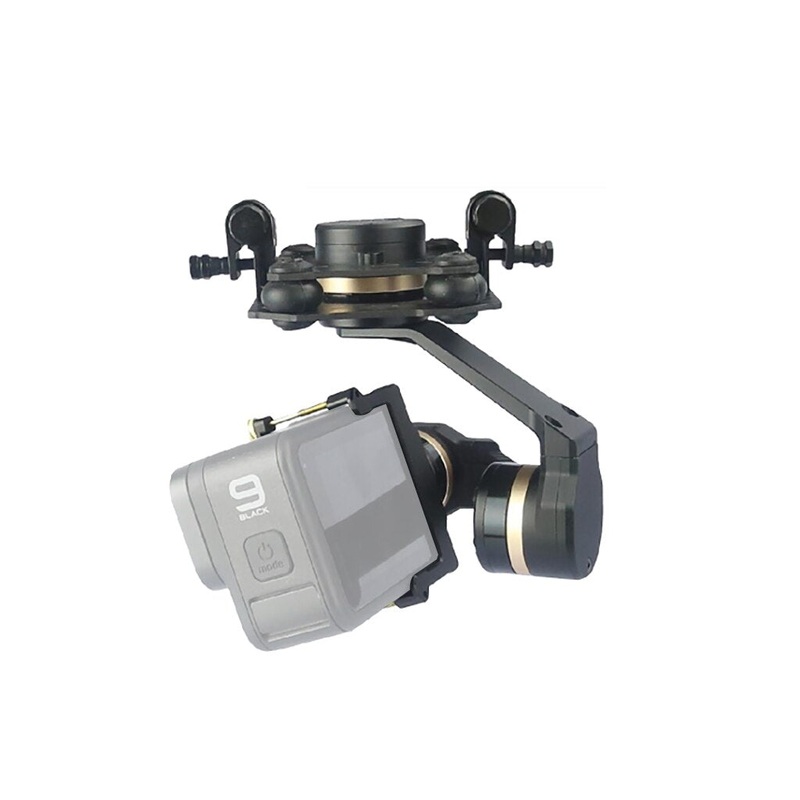

Tarot Compatible with GOPRO T-3D Series metal 3-axis gimbal for GOPRO HERO cameras
Industrial design with a fully CNC machined integral ribbed wall plate structure
Bringing lightness and maximum stability
Precise camera locking for high stability, even in harsh and extreme environments
metal 3-axle gimbal with excellent algorithmic control
Built-in independent IMU for precise gimbal attitude control
Integrated gimbal servo drive module
Supports pointing follow and FPV working modes
Product parameters:
Input power: 3S-6S Li (11V-26V)
Operating current: 30mA (@25V) / 50mA (@12V)
Blocking current: 350mA (@25V) / 700mA (@12V)
Attitude control accuracy: 0.02 degrees
Maximum controllable speed
Rotation direction (PAN) : 200/s
Tilt direction (TILT) : 200/s
Rolling direction (ROLL) : 200/s
Controlled rotation range
Rotation direction (PAN): 330
Tilt direction (TILT): -135 to +45
Rolling direction (ROLL): 48
S-Bus/PWM receiver support
Operating ambient temperature: -20C to +50C
Maximum external dimensions (LW): 107mm *91mm *109mm
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit); Win10
Product Specifications:
metal 3-axis gimbal (165g) 1
Gimbal main control module (362511mm) 1
8P gimbal main control and gimbal body connection cable1
5V output, receiver integration cable1
USB module (27217mm)1
ZYX-M flight control connection cable1
