Overview

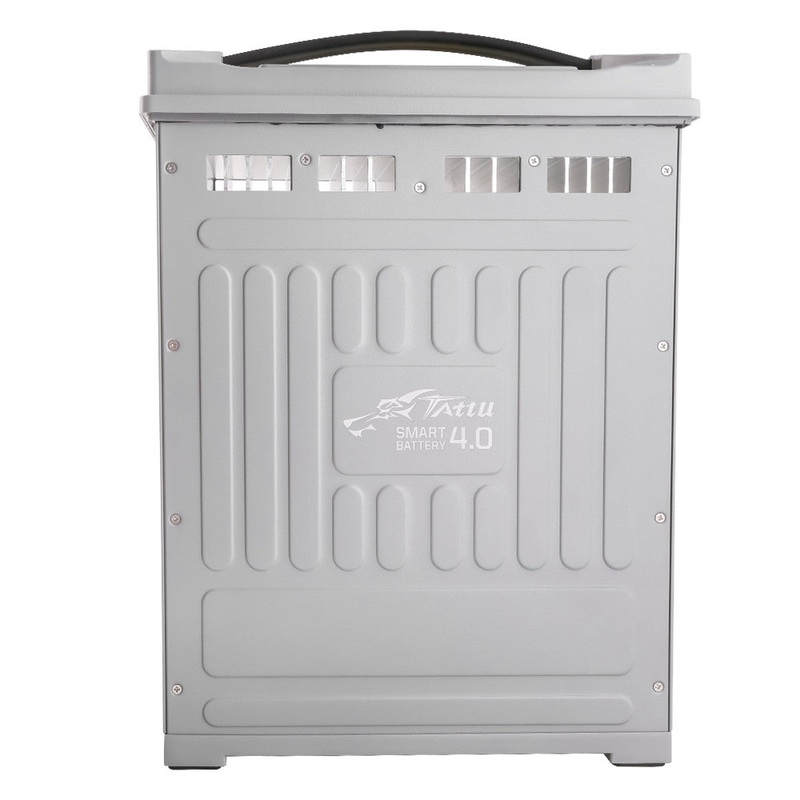

This Smart LiPo Battery Pack is the Tattu 4.0 30000mAh 53.2V 14S1P 35C smart drone battery with a MOLEX discharge connector, designed for heavy payload drones and agricultural drones up to 30L. It uses high energy density cells and an advanced BMS, with plug & play installation and support for fast charging up to 5C when used with the TA9000Pro Charger.
Key Features
- High-precision BMS with integrated Bluetooth for real-time monitoring and data access
- Drone CAN protocol accessible
- SOC indication, fault self-diagnosis, self-balancing, smart storage
- Log storage, cycle statistics, software upgrade function
- Automatic charging current adjustment and protection functions
- On/off function helps prevent sparking when the battery is turned off before connecting devices
- Upgraded structure for enhanced heat dissipation and efficient cooling
- Bluetooth module integrated into BMS (no USB communication required)
- Handles optimized; structure reduces risk of corrosion-related short-circuits from humidity/liquids
For product support and order assistance, contact [email protected] or visit https://rcdrone.top/.
Specifications
| Brand | TATTU |
| Series | Tattu 4.0 |
| Minimum Capacity | 30000mAh |
| Configuration | 14S1P |
| Nominal Voltage | 53.2V |
| Power | 1596 Wh |
| Discharge Rate | 35C |
| Connector Type | MOLEX |
| Discharge Plug | Molex-46562-2657 |
| Max Continuous Discharge Current | 270A |
| Max Continuous Discharge Current (also stated) | 180A |
| Peak Discharge Current | 350A 3S |
| Dimensions | 333mm (L) x 237mm (W) x 92.5mm (H) |
| Length (5mm) | 333 |
| Width (2mm) | 237 |
| Height (2mm) | 92.5 |
| Net Weight | 11400g (350g) / 11500 (100g) |
| Operation Temperature | -20 – 60 |
| Charge Temperature | 5~10 1C, 10~20 1.5C, 20~60 5C |
| Discharge Temperature | -20~0 0.2C, 0~10 0.5C, 10~60 9C |
Bluetooth Guide
Manuals
- User Manual (PDF): TATTU-4.01420Ah30AhUserManual.pdf
- Battery guide: Lipo Battery Guide
Notice
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
