Overview

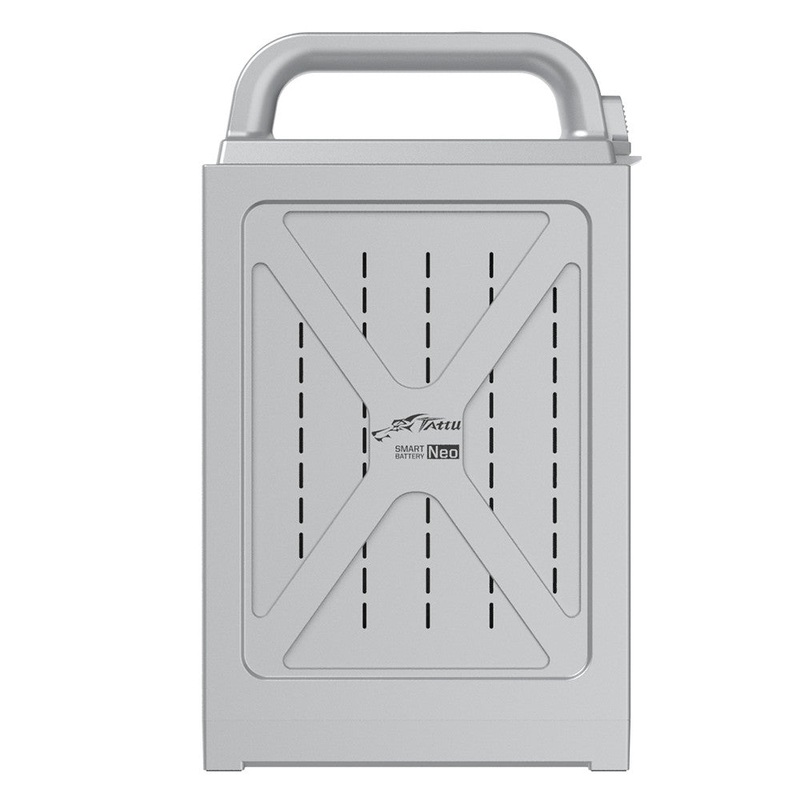

The Tattu NEO series is a smart UAV battery designed for professional applications including inspection, surveying, firefighting, and logistics. It supports a 1C charging rate, 4.45V ultra high voltage, MOSFET protection, and real-time battery data reading via a Bluetooth app.
Key Features
- Customized structure: Side rails and a bottom female connector for direct plug-and-play operation.
- MOSFET protection: Helps prevent short-circuit risks and improves operational safety.
- Communication support: Supports multi-battery serial and parallel communication.
- Smart monitoring: Real-time battery data reading via Bluetooth app.
- Ultra high voltage: 4.45V UHV support (as stated for the series).
Specifications
| Brand | TATTU |
| Series | Tattu NEO |
| Model | TANE29K12S5HVX |
| Capacity | 29000mAh |
| Nominal Voltage | 47.4V (Cell: 3.95V) |
| Configuration | 12S1P |
| Discharge Rate | 5C |
| Charging Rate | 1C |
| Dimensions (T W L) | 97.2 163.6 285.6mm |
| Length Tolerance | 285.6mm (5mm) |
| Width Tolerance | 163.6mm (2mm) |
| Height Tolerance | 97.2mm (2mm) |
| Weight | Approx. 5950 100g |
| Net Weight Tolerance | 5950g (100g) |
| Connector | PDC1810F0002 / Prolanv Bottom Connector |
| Paired Charger | TA3200 Series / TA7200PRO |
Applications
- Industrial UAV inspection
- Surveying
- Firefighting operations
- Logistics drones
Video
Resources
- Tattu Launches the New NEO Series Battery for Industrial Drones, Designed for Extended Flight Time
- LiPo Battery Guide
Service Notes & Compliance
Orders are dispatched via FedEx from the USA. A 90-day warranty is offered after the order date. For compatibility questions (charger, connector, or integration), contact [email protected] or visit https://rcdrone.top/.
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Gens Ace and its partners state they fulfill ISO9001 and ISO14001 standards.
