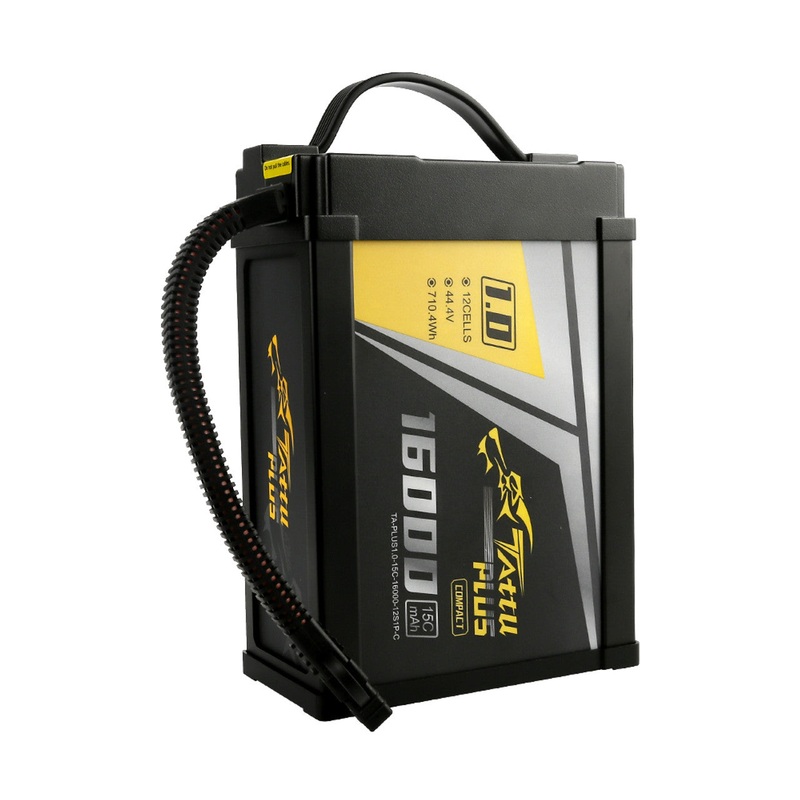

Tattu Plus 1.0 Compact version 16000mAh 12S 15C 44.4V Lipo batterypack with XT90-S Plug is suitable for Freefly AltaX, agricultural spraying drone, security mapping, power inspection and other industries.
Tattu Plus1.0 Compact version 16000mAh 12S 15C 44.4V Lipo batterypack with XT90-S Plug is suitable for Freefly AltaX,agricultural spraying drone,security mapping, power inspection and other industries.The whole system includes data acquisition, security warning, power calculation, automatic equalization, chargingwarning, discharge anti-sparking, support charging by charging butler, abnormal state alarm, human-computerinteraction, history query, parameter configuration, etc.Also can access the battery pack status and battery packworking history data by CAN/SMBU communication port and host computer software.
Feature:
1. Communication protocol CAN
2.Communication protection
3. Fuel gauge
4. Self-inspection
5. Using time log
6. Current detection
7. Ultra-Low power consumption
8. Abormal log
9. Anti-spark
Specifications:
– Minimum Capacity: 16000mAh
– Configuration: 12S1P / 44.4V / 12 Cells
– Discharge Rate: 15C
– Max Burst Discharge Rate: 30C
– Net Weight(20g):4250g
– Dimensions: 217x150x80mm (L x W x H)
– Discharge Plug:XT90-S
| Brand: | TATTU |
| Capacity(mAh): | 16000 |
| Configuration: | 12S1P |
| Connector Type: | XT90-S |
| Discharge Rate (C): | 15 |
| Height(2mm): | 80 |
| Length(5mm): | 217 |
| Max Burst discharge Rate (C): | 30 |
| Net Weight(20g): | 4250 |
| Over 300wh: | Yes |
| over_power: | Yes |
| Part Number: | TAA16KP12S15X |
| Preorder config: | No |
| sorting: | TattuLarge |
| upc: | 889551010030 |
| Voltage(V): | 44.4 |
| Width(2mm): | 150 |
| Wire Gauge: | 8# |
| Discharge Wire Length(mm): | / |
| Amount: | 1pc/box |
| Capacity Range(mAh): | 10000-49999 |
| Part N: | TA-PLUS1.0-15C-16000-12S1P-C-XT90 |
| Manual: | TAA16KP12S15X.pdf |
Application:
Tattu Plus 1.0 Compact version 16000mAh 12S 15C 44.4V Lipo batterypack with XT90-S Plug is suitable for Freefly AltaX, agricultural spraying drone, security mapping, power inspection and other industries.
Tattu matching charger:
Tattu TA3200 Charger for 6S~14S pouch cell / smart batteries.
