Overview

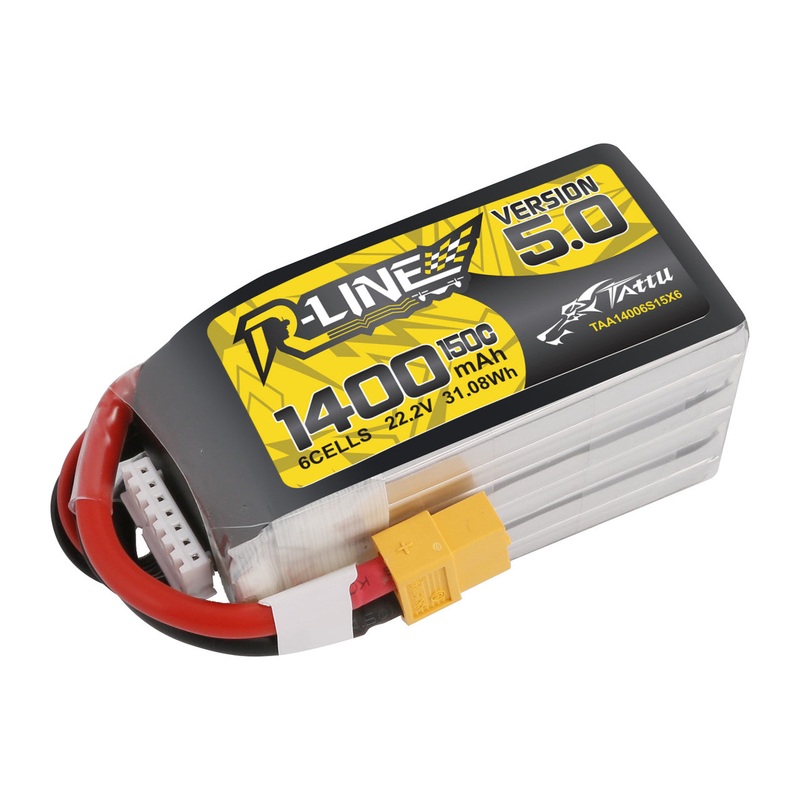

Tattu R-Line Version 5.0 1400mAh 6S 22.2V 150C LiPo battery pack is an updated R-Line series battery (2022), designed for professional FPV racing competitions. R-Line Version 5.0 introduces Al Boehmite technology for improved overall performance and continuous power output.
Key Features
- R-Line Version 5.0 series, aimed at FPV racing use
- 150C discharge rate with up to 260C max burst discharge rate
- 6S (22.2V) configuration
- Drop-resistance improvement listed for Version 5.0
- Discharge plug: XT60 (connector type listed as XT60U)
- Charge/balance interface: JST-XHR (balancer connector type listed as JST-XHR-7P)
Customer service: [email protected] or https://rcdrone.top/
Specifications
| Brand | Tattu |
| Series | R-Line |
| Version | 5.0 |
| Minimum Capacity | 1400mAh |
| Capacity (mAh) | 1400 |
| Capacity Range (mAh) | 1000-2999 |
| Configuration | 6S / 22.2V / 6 Cells |
| Configuration (listed) | 6S1P |
| Voltage (V) | 22.2 |
| Discharge Rate | 150C |
| Max Burst Discharge Rate | 260C |
| Net Weight (20g) | 222g |
| Dimensions (L x W x H) | 78mm x 39mm x 42mm |
| Length (5mm) | 78mm |
| Width (2mm) | 39mm |
| Height (2mm) | 42mm |
| Discharge Plug | XT60 |
| Connector Type | XT60U |
| Charge Plug | JST-XHR |
| Balancer Connector Type | JST-XHR-7P |
| Discharge Wire Length (mm) | 65 |
| Balancer Wire Length (mm) | 45 |
| Wire Gauge | 12# |
| Quantity per box | 30pcs/box |
| Over 300wh | No |
| Preorder config | No |
| Is featured product | No |
Applications
- Professional FPV racing competitions
Manuals
Battery instruction (guide): https://genstattu.com/bw
Video
Details
The Tattu R-Line V5 1400mAh 6S pack is shown mounted on an FPV quad, with a compact, strap-friendly shape for tight builds.
