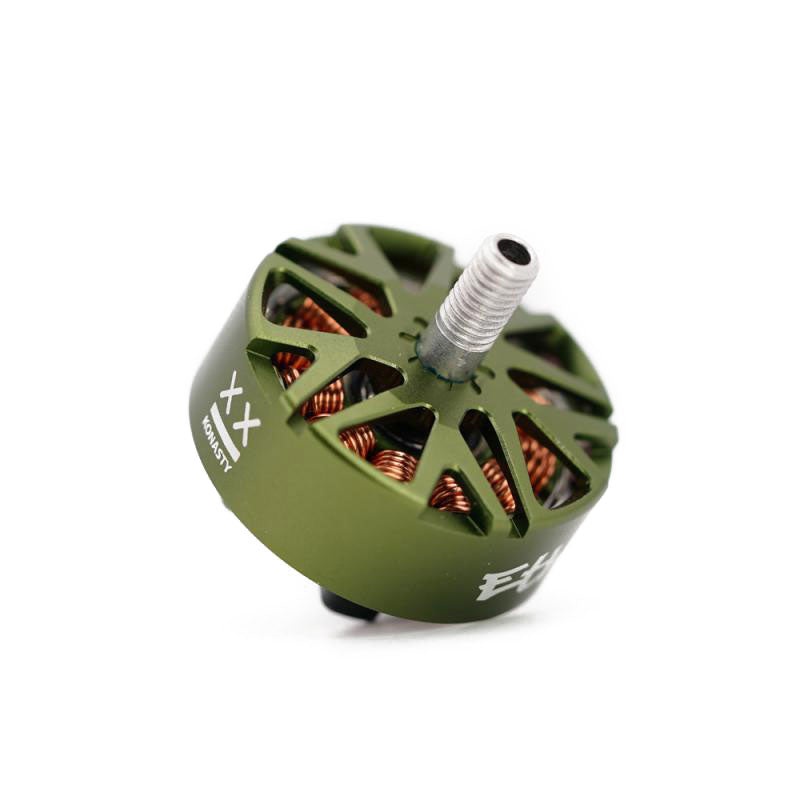

TBS Ethix Konasty Moon Boot V2 2507 1750/2200kv Motor

Are you looking to buy TBS Ethix Konasty Moon Boot V2 2507 1750/2200kv Motor in Australia?

Its been 2 years since we launched the first version of the Moon boot and now its time we introduce V2. The new moon boot delivers the same smoothness, quality and efficiency as the original but with added power when you need it on the high end and control when you need it most on the low end. All this is gained with a larger stator size and two KV options to choose. From freestyle to long range cinematic shots this motor does it all.

SPECIFICATION

• Stator Size (Diameter): 25mm*7mm
• Kv: 1750kv
• Magnets: N52SH Curved
• Windings: 10turn DLRK
• Shaft Length (mm): 11.5mm
• Shaft Diameter (mm): 4mm
• Shaft material: Steel
• Bearing: NSK684
• Weight (With Wires) (g): 41.7g
• Cells (Lipo): 6S
• Max Current (A): 45A
• Max Burst Current (A): 60A
• Internal Resistance (Rm): 64m
• Wire Spec (AWG): 20#
• Base Mounting Pattern: 16x16mm
• Base Mounting Thread: M3 Thread
• Motor Overall Dimensions: 31.8mm*19.3mm
