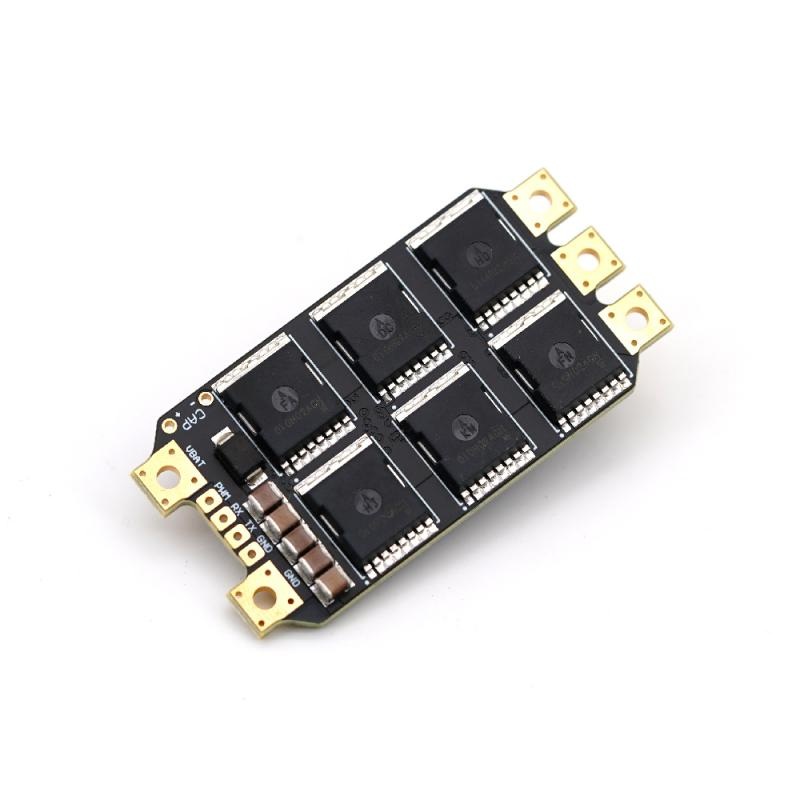

The TBS Lucid 12S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.
Featuring an 8 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities. With built in TVS, voltage spikes are no longer a concern. By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
Specifications
- ESC software: AlkaMotors32 (AM32)
- ESC target: AM32_TBS_12S_F421
- Rated current: 70A, 60 seconds, 90A 40 seconds
- Peak Current: 120A, 30 seconds
- Propellers: Up to 15″, over 7″ requires good airflow
- Input: 3-12S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 57.75mm x 29mm
- Mounting: See DXF drawing
- Weight: 19g excl. cable and capacitors
Includes
- 1x TBS Lucid 12S ESC
- 1x XT60 12 AWG wire
- 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
- 1x shrink tube (transparent)
- 2x 330uF 12S low-ESR Capactior
