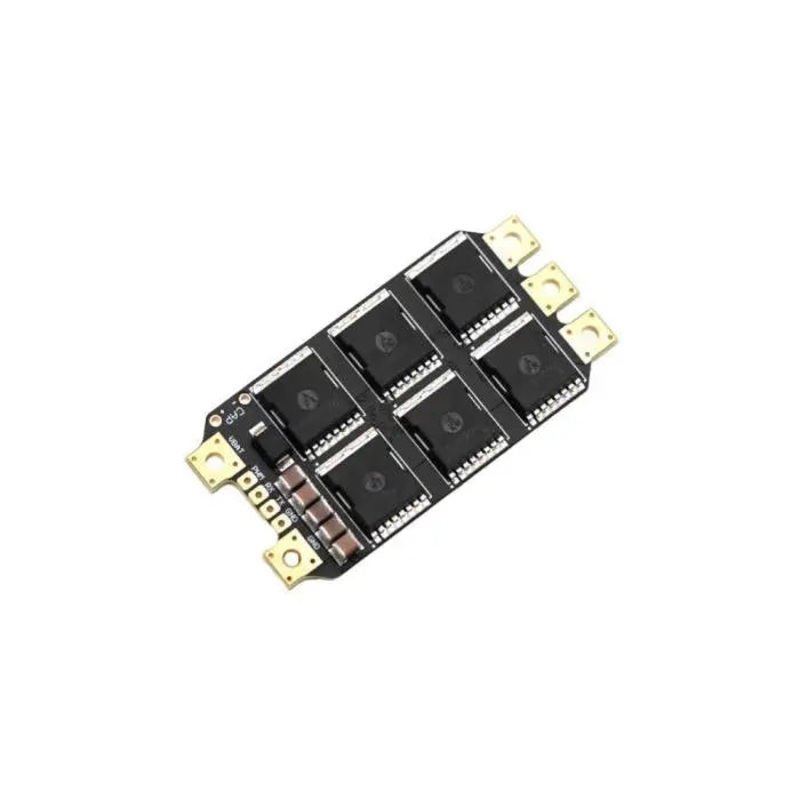

Power Meets Precision with the TBS Lucid 12S ESC NDAA Compliant

The TBS Lucid 12S ESC is purpose-built for demanding FPV applications that require maximum reliability and high-voltage support. This NDAA-compliant electronic speed controller is engineered for both racing and cinematic drones that operate with heavy payloads and high currents. Developed in collaboration with AlkaMotors32 (AM32), this ESC integrates advanced firmware tuning with an 8-layer high current PCBdesigned to handle brutal conditions while remaining lightweight and efficient.

With TVS protection built-in, the TBS Lucid 12S ESC shields your electronics from voltage spikes, ensuring safe and consistent operation. Its thermal design focuses on passive heat dissipation, eliminating the need for bulky heatsinks while still handling up to 120A peak current on 3-12S LiPo input. Whether youre flying long-range rigs or high-speed builds, the Lucid 12S offers elite performance with clean power and stable telemetry.

Key Features:

• NDAA Compliant Fully approved for government, defense, and industrial use

• AM32 Firmware Performance-tuned with support for bi-directional DShot

• Rated at 90A (40s), Peak 120A (30s) Handles high current under load

• High-Voltage Ready Operates on 312S LiPo systems

• TVS Surge Protection Prevents ESC and FC damage from voltage spikes

• 8-Layer High Current Density PCB Maximized power delivery and thermal stability

• Compact & Lightweight Just 19g (excluding wires/caps)

• Supports Bi-directional DShot and KISS ESC Telemetry

• No BEC Ensures clean power isolation for critical components

Specifications:

• Protocol Support: Bi-directional DShot 300/600, KISS ESC Telemetry

• ESC Software: AlkaMotors32 (AM32)

• ESC Target: AM32_TBS_12S_F421

• Rated Current: 70A (60 seconds), 90A (40 seconds)

• Peak Current: 120A (30 seconds)

• Input Voltage: 312S LiPo

• ESC Current Port: Yes

• BEC: None

• Weight: 19g (excluding wire and capacitors)

• Dimensions: 57.75mm x 29mm

• Propeller Compatibility: Up to 15 (requires airflow for 7+)

• NDAA Compliant: Yes

Package Includes:

• 1 TBS Lucid 90A 312S AM32 ESC NDAA

• 1 3-Color Signal Wire (PWM/Serial Input)

• 2 330F 12S Low-ESR Capacitors

• 1 Transparent Shrink Tube

• 1 XT60 12AWG Power Wire

Downloads & Resources:

• AM32 Configurator

• AM32 Firmware & Targets

• TBS Lucid Manual (PDF)
