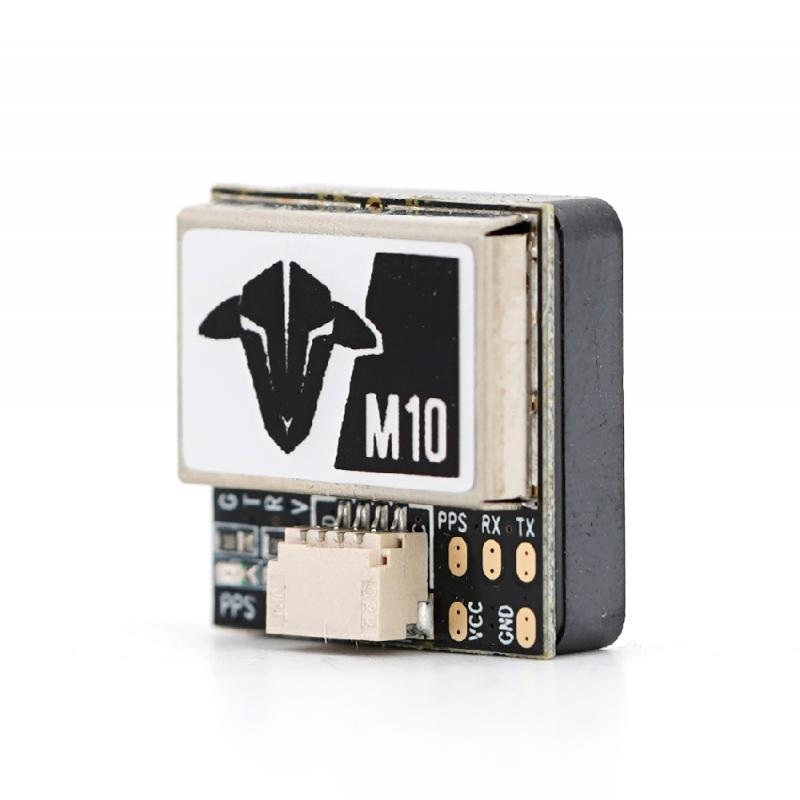

TBS M10 GPS Glonass

TBS have released another version of their M10 GPS. The best bang for buck GPS just got better. The TBS M10 is ideal for Quads running betaflight and is highly compact and lightweight.

Specifications

• Chipset – ublox UBX-M10050
• Flash memory for saving configuration.
• Frequency – L1, 1575.42MHz ; L2,1561.10MHZL3,1602.00MHZ
• Baud Rate – 4800bps-921600bps, default 38400bps
• Channel – N/a
• Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
• Cold start – Average 26 seconds
• Warm start – Average 24 seconds
• Hot start – Average 1 second
• Accuracy – (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal:
• RMS 30 ns)
• Maximum height – 50000m
• Maximum speed – 500 m/s
• Maximum acceleration – 4G
• Refresh Rate – 0.25Hz-18Hz, default 1Hz
• Size – 18 x 18 x 6.1 mm
• Weight – 4.9g
• Input Voltage – 5V
