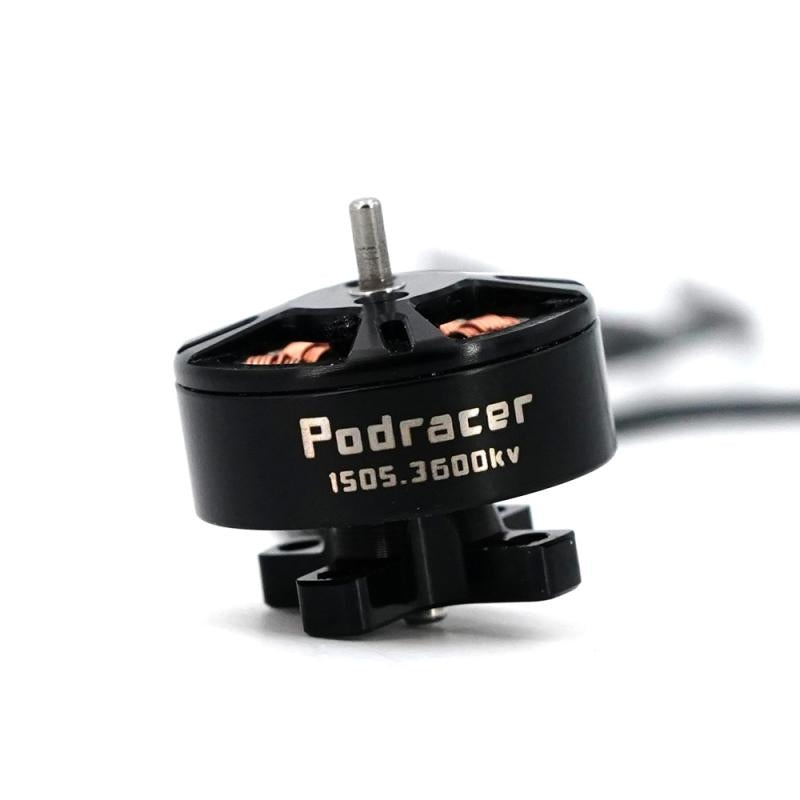

TBS Podracer 1505 KV3600 FPV Drone Motor

TBS Podracer 1505 KV3600 designed for the podracer 4″ frame!

Check out our TBS Podracer Frame and Parts, all our 15XX Motorsand the rest of our TBS Products!

Specifications:

• Stator Size (Diameter): 15mm
• KV: 3600
• Magnets: N52SH Curved
• Windings: 15 turn DLRK
• Shaft Length (mm): 1.5-4mm
• Main Shaft Diameter (mm): 2mm
• Prop Shade Diameter (mm): 1.5mm
• Shaft material: steel
• Bearing: 4*2*2.5
• Weight (With Wires)(g): 11g
• Cells (Lipo): 2-4S
• Max Current (A): 12A
• Max Burst Current (A): 15A
• Internal Resistance (Rm): 0.20
• Wire Spec (AWG): AWG 24#
• Base Mounting Pattern: 12x12mm
• Base Mounting Thread: M2 Thread
• Motor Overall Dimensions: 19mmx14mm

Package Includes:

• 1 xTBS Podracer 1505 KV3600
