What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

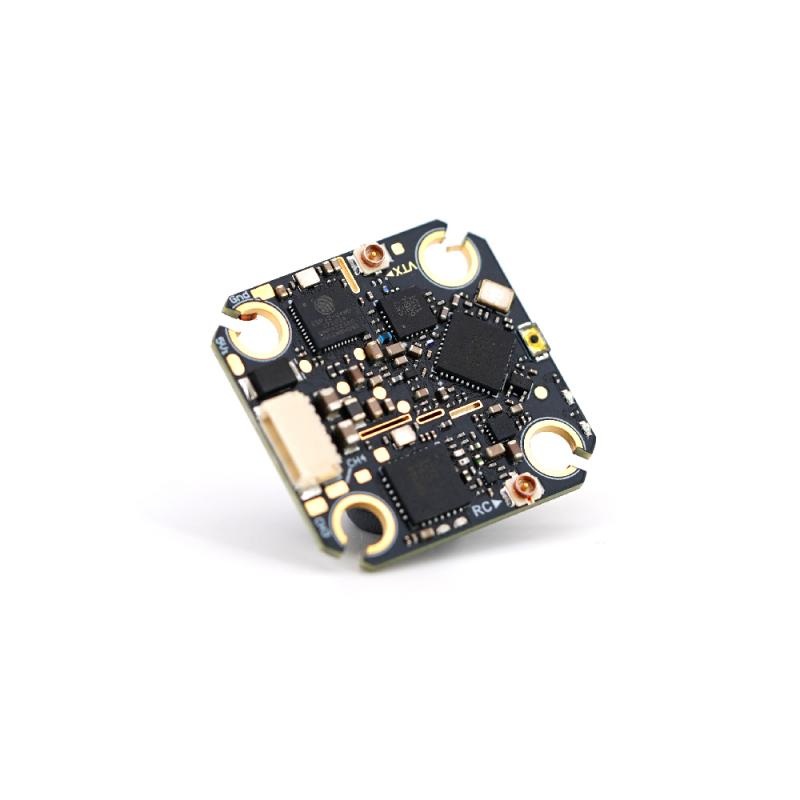

Introducing the TBS Tracer Sixty9, sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20×20, but we do incldue adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame – without any stacking necessity.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
Specifications
| CRSF | V3 ready |
| Weight | 4.1g (board only) |
| Antenna ports | 1x video transmitter, 1x R/C receiver |
| Size | 24mm x 24mm |
| Input voltage | 5V |
| Requires | Firmware V6.2x and above |
| VTX Table | VTX Table for Betaflight |
Included
- 1x TBS Tracer Sixty9
- 1x TBS Tracer Immortal-T antenna
- 1x u.FL to SMA mount (for VTx)
- 1x JST-SH x 9 connector
Please note: the heatsink/tin shield is no longer included in this kit.
Downloads
- TBS Crossfire – RED Declaration of Conformity
- TBS Crossfire Manual
