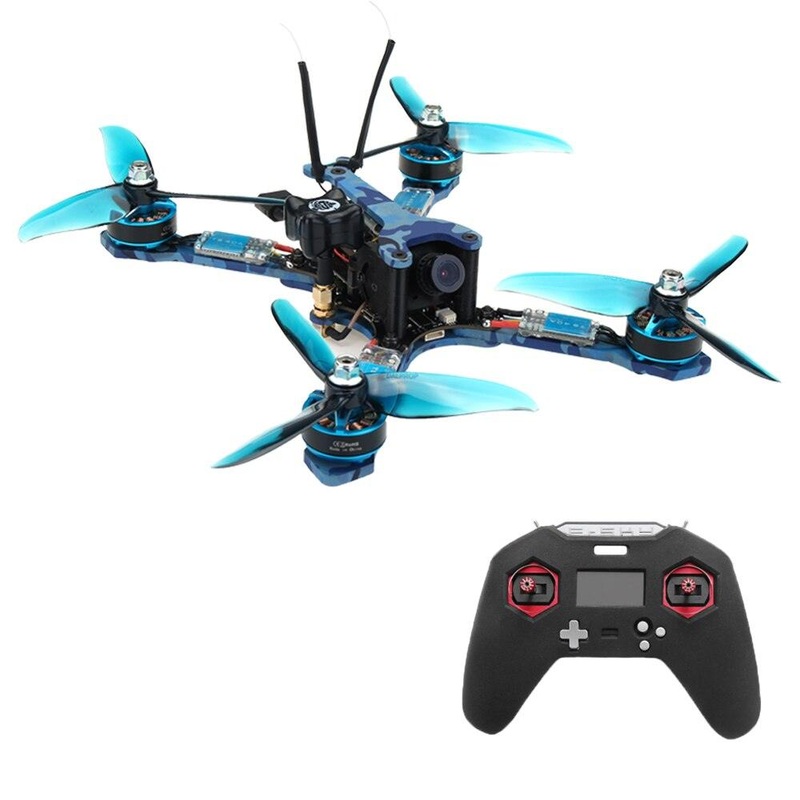

TCMMRC TS215 Rc Drone SPECIFICATIONS

Video Capture Resolution: 1080p FHD

Type: Airplane

State of Assembly: Ready-to-Go

Remote Distance: 0-2km

Remote Control: Yes

Recommend Age: 12+y

Plugs Type: XT60

Package Includes: Camera

Package Includes: Original Box

Package Includes: Remote Controller

Origin: Mainland China

Operator Skill Level: Expert

Operator Skill Level: Intermediate

Operator Skill Level: Beginner

Model Number: TS215

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 5-10min

Features: FPV Capable

Features: Other

Features: Integrated Camera

Features: Auto Return

Dimensions: 5-Inch

Controller Mode: MODE1

Controller Mode: MODE2

Controller Battery: Include

Control Channels: 8 Channels

Certification: CE

Camera Mount Type: Fixed Camera Mount

CE: Certificate

Brand Name: TCMMRC

Specification

Wheelbase: 215 water transfer

Tm: 32 bit 40A supports dshot1200 (and downwards compatible 150/300/600) ultra high speed DShot digital signal throttle input.

No BEC continuous 40A instantaneous 45A 2-6s BLHeli_32 authorized firmware

Board LED indicator lamp can adjust a variety of colors

Built-in current sensor

Motor: 2306 motor 2450kv 2-6s

Flight control: a custom version of F4 flight control

CPU: f4STM32 F405 single chip microcomputer

Barometer: BMP280

Support 3-5s

MPU6000 nine axis sensor

SD card slot

With OSD

Built in 5v3A BEC

Picture biography:

72ch

25200500 800MW four gear adjustable

Support Smart Audio{remote control OSD remote tuning reference}

MMCX joint

7-24v wide pressure support

Size: 53*80mm

Camera

1200TVL CCD 2.8mm lens

Size: 25mm*25mm, weight: 9.5 grams

PAL/NTSC (the default PAL system can be selected by NTSC).

Working voltage: DC5-12V

Working current: 70mA (low power)

Storage board:

Support 720p high definition recording

Maximum support for 32g memory cards

It is recommended to use the class10 memory card

The save format is: mp4.avi file format
