Features:
- All new High-quality MOSFETswith low internal resistance & heat generation, and individual metal heatsink
- NewandfasterF4MCU@150Mhz(comparedtoF3@108Mhz&F0@48Mhz)
- Separatedrive&controlcircuit, reducingtheelectricalinterferencetothecontrolcircuit
Specification:
- ContinuousCurrent:50Ax4
- BurstCurrent:60Ax4
- Battery Supports: 4-6S
- PWMFrequency:16kto96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Mountingholes: 3.6mm @ 20x20mm, compatible with either M2&M3RubberGourmet (Included)
- Dimension: 32 x40 mm
PIN MAP:
Package included:

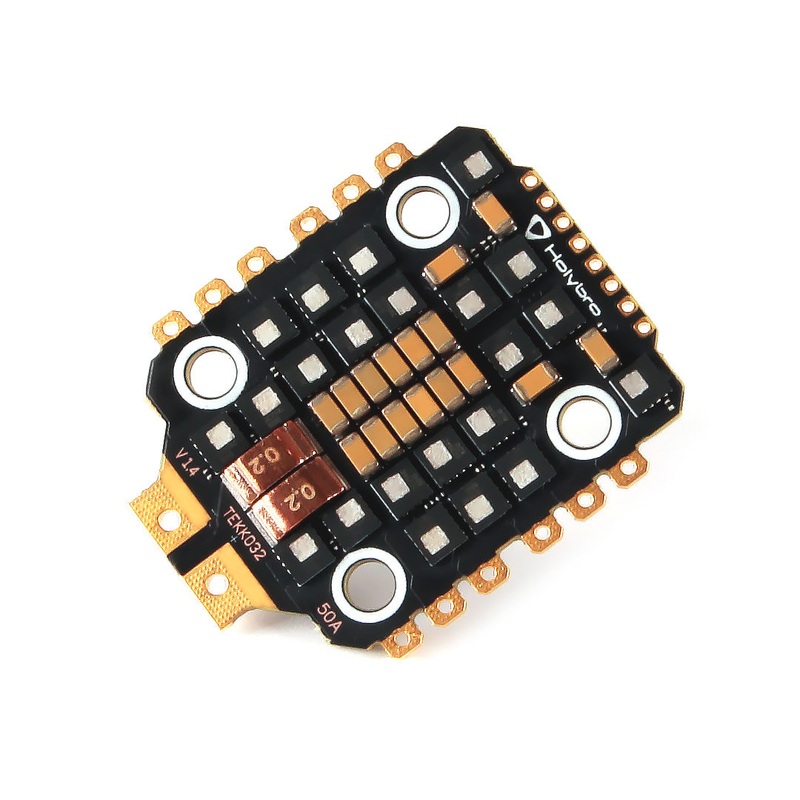

- Tekko32 F4 4in1 mini 50A ESC *1
- M2 Anti-Vibration Silicone Grommet Insert *4
- M3 Anti-Vibration Silicone Grommet Insert *4
- Electrolytic capacito: 1000uF 35v *1
- 8pin to 8pin 1mm pitch 65mm cable *1
- 8pin to 8pin 1mm pitch 25mm cable *1
