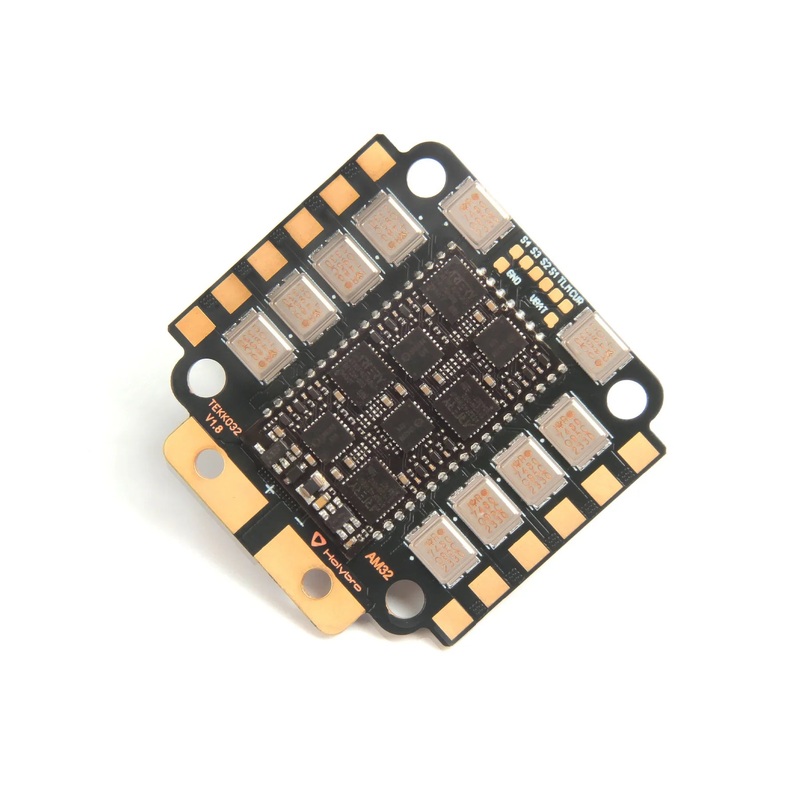

The Tekko32 Metal is a revolutionary 4in1 ESC that utilizes the high-speed F4 MCU, making it a top choice in the market. This MOSFET ESC boasts a robust metal case and offers precise control with a swift response.
Package Includes:
1x Tekko32 F4 Metal 4in1 65A ESC (AM32)
Features:
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to96k
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specifications:
Continuous Current: 65A x4
Burst Current: 75A x4
Supports 4-6S battery
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
No output BEC
AM32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Amperage meter scale ratio: 180
Dimensions: 43 x 44mm / Weight: 15.8g
Mounting holes: M4 30.5×30.5mm (M3 grommets included)
