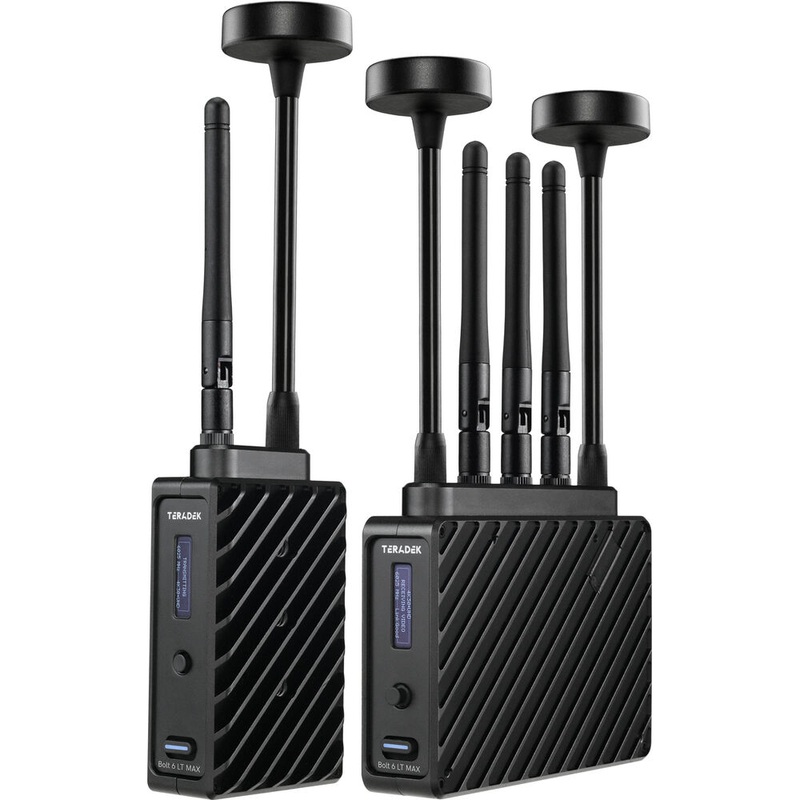

Teradek Bolt 6 LT Max TX/RX Deluxe Set Gold Mount

Teradek Bolt 6 LT Max TX/RX Deluxe Set Gold Mount

Transmit and receive lossless HD video from up to 5000′ line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A Gold mount battery plate is included to power the receiver with a professional Gold mount battery. The transmitter unit provides a powerful signal that can travel up to a 5000′ line of sight.

The transmitter sends up to 4K30 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Key Features:

Supports New 6 GHz Frequency Band

Transmit Video up to 5000′ Line of Sight

HDMI and 3G-SDI Inputs and Outputs

Transmit up to 4K30 Video

Long-Range Panel Antenna Included

Gold Mount Battery Mount on RX

10-Bit 4:2:2 Support, No Delay

Compatible with Bolt 4K Series TX/RX

AES-256 Encryption, 7 Antennas

Bluetooth Mobile App, Spectrum Analyser

What’s in the Box:

Teradek Bolt 6 LT Max TX/RX Deluxe Set Gold Mount

Bolt 6 LT MAX 3G-SDI/HDMI Transmitter (Gold Mount)

Bolt 6 LT MAX 3G-SDI/HDMI Receiver (Gold Mount)

Antenna Array

Bolt Battery Cover

2-Pin to D-Tap Power Cable (18″)

Micro-USB to USB Type-A Cable (36″)

HDMI Type A Cable (18″)

18W AC Adapter with Cable (6′)

BNC Cable (10″)

RP-SMA Female Cable (4″)

2-Pin Connector Cable for ALEXA (18″)

1/4″-20 Light Stand Adapter

Shoe Adapter

Wooden Camera Offset Mount

Standard Antenna

Mushroom Antenna

Carry Case
