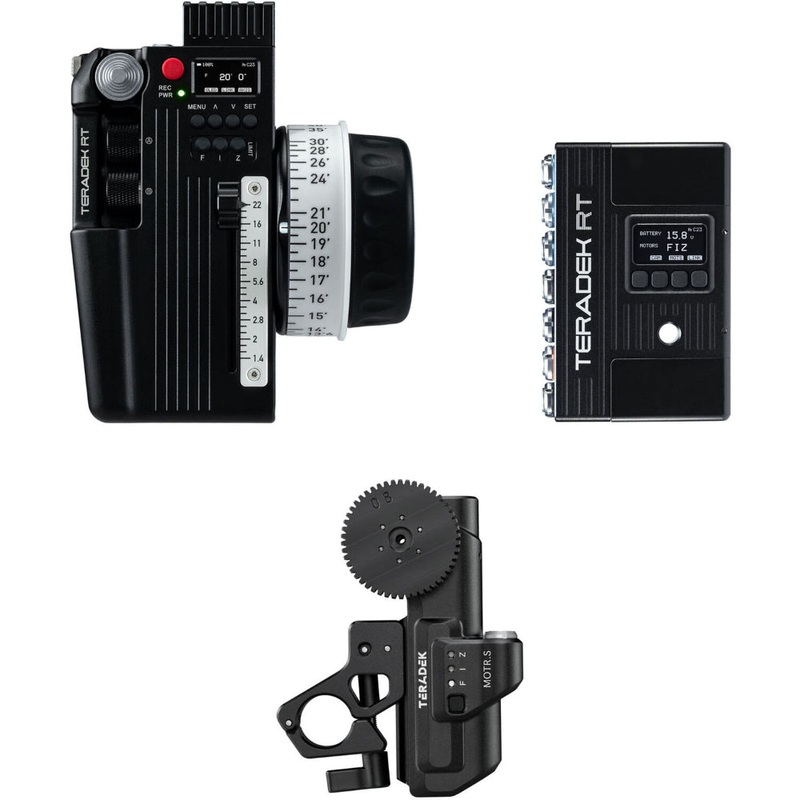

Teradek RT FIZ Wireless Lens Control Kit with CTRL.3, MDR.X & MOTR.S

Teradek RT FIZ Wireless Lens Control Kit with CTRL.3, MDR.X & MOTR.S

Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit from Teradek, featuring the upgraded MOTR.S lens motor. The kit includes a CTRL.3 wireless lens controller, an MDR.X 3-channel wireless receiver, and the compact MOTR.S. The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments. Other accessories include six imperial focus overlay mapping disks, five metric focus overlap mapping disks, and RT CTRL iris strip sliders. Easily set up your kit thanks to its included cables, mounting brackets, and LP-E6 battery. An extra-large, hard-shell case with custom foam allows you to take the entire kit on the go. Read more below about the items included in this kit.

Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth

Connect this to your camera’s lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth from Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.

An integrated OLED display allows you to easily set your device and see the settings, and you can also use the available Teradek RT app to manage, update, and configure the device. This ultracompact, lightweight unit weighs 4.8 kg and is powered via a 2-pin LEMO connector requiring 7 to 17 VDC.

Multiple Inputs/Outputs

Three motor ports for focus, iris, and zoom

Two auxiliary inputs for wired control (via Teradek RT thumbwheel/zoom rocker)

One cam output for RED DSMC2 camera control

Camera Control

Run/Stop control, including but not limited to:

ARRI ALEXA, ALEXA Mini, AMIRA, etc.

Blackmagic

Canon C100, C300 (MkII+), C500

Panasonic VariCam

Phantom

RED DSMC2, DSMC, ONE

Sony F5, F55, FS7 (MkII+)

RED DSMC/DSMC2 camera control:

EF/AF focus/iris

Shutter

ISO

Button features 2x magnification, edge, and focus assist

Compact and Lightweight

The unit’s small form factor makes it perfect for all camera setups, especially those on gimbals, handheld rigs, cranes, drones, and other movement rigs.

OLED Display

Each receiver includes an on-unit OLED display with push buttons for configuring motor axes, as well as displaying status readouts including wireless channels, battery voltage, and more.

Wireless Range

RT FHSS

Line-of-sight: Up to 5000′ (in USA/FCC mode)

Indoors: Up to 492′

Bluetooth 5

Theoretical maximum range of 800′ (actual range will vary)

Teradek RT App

Manage, update, and configure every piece of your Teradek RT system via Bluetooth 5 with the Teradek RT app for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware, and much more from the convenience of your smartphone or tablet.

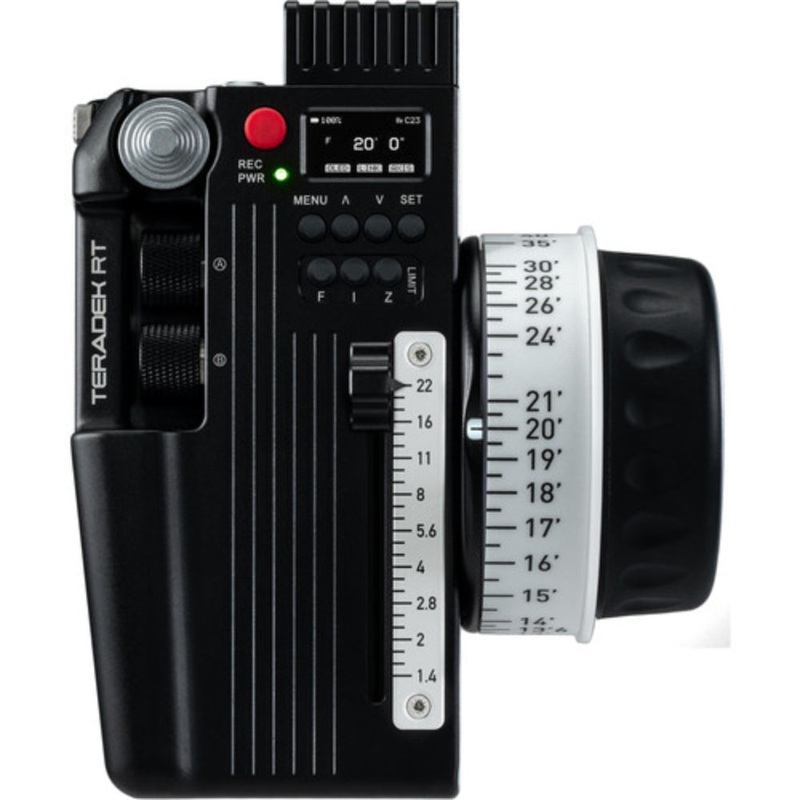

Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)

For precise lens control with your Teradek RT motors and receivers, the Teradek CTRL.3 Three-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.3 has an outdoor wireless range of 5000′ and an indoor wireless range of 500′. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.

The large focus knob, flexible mounting options, OLED display for configuration and lens data, and its lightweight design make the CTRL.3 accessible and easy to use. It’s powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of usage time. Features include a lens mapping firmware update to utilise the included pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.3 comes with five white discs Type-B, a 3′ USB cable, a SmallHD monitor interface cable, a large case, six pre-marked focus rings, and four Iris strip sliders.

Run/stop control for RED (EPIC, SCARLET, WEAPON, RAVEN, etc.), ARRI (ALEXA, AMIRA, etc.), Phantom, Sony F55, and LANC cameras (Blackmagic, Canon C100/300/500, Sony FS7, etc.)

Knob, slider, zoom x/y, and rollers (a + b)

Lens data overlays on SmallHD monitors running OS3 allow you to get follow focus information directly on your monitor including focal distance, focal length, iris, and zoom

MDR.X, MDR.ACI, and RT iOS app Bluetooth compatibility

Manage, update, and configure your Teradek RT system with the Teradek RT app for iOS

Four 1/4″-20 threads, an ARRI rosette with M6 thread, and lanyard mount for mounting

Slot for a Canon LP-E6 battery (6.2 to 8.4V)

5-pin locking connector for wired mode

USB port provides monitor interface and wired control

Pre-marked rings come in imperial units

FCC, IC, and CE certifications

Teradek RT MOTR.S Lens Motor

Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.

An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.

MOTR.S Upgrades

More compact and lightweight form factor

Redesigned aluminium chassis, reinforced sockets, next gen circuit boards

New 15/19mm rod clamp with better located handle

0.95nm maximum torque, 297 teeth per second

Key Features:

MDR.X 3-Channel Lens Control Receiver

MOTR.S Lens Motor

CTRL.3 Wireless Lens Controller

Pre-Marked Focus Rings, Iris Strips

Motor, Controller, USB & Power Cables

LP-E6 Battery with Charger

Mounting Brackets, Neck Strap

Hard-Shell Case with Custom Foam

What’s in the Box:

Teradek RT FIZ Wireless Lens Control Kit with CTRL.3, MDR.X & MOTR.S

USB Type-A to Micro-USB Type-B Cable (3′)

5-Pin to Micro-USB SmallHD Monitor Interface Cable (1.3′)

Pre-Marked Focus Ring (0.25m Minimum Focus)

Pre-Marked Focus Ring (0.5m Minimum Focus)

Pre-Marked Focus Ring (1m Minimum Focus)

Pre-Marked Focus Ring (2m Minimum Focus)

Pre-Marked Focus Ring (3m Minimum Focus)

Large Teradek Case with RT Motion 3 Motor

0.8 MOD Gear

MOTR.S Bracket
