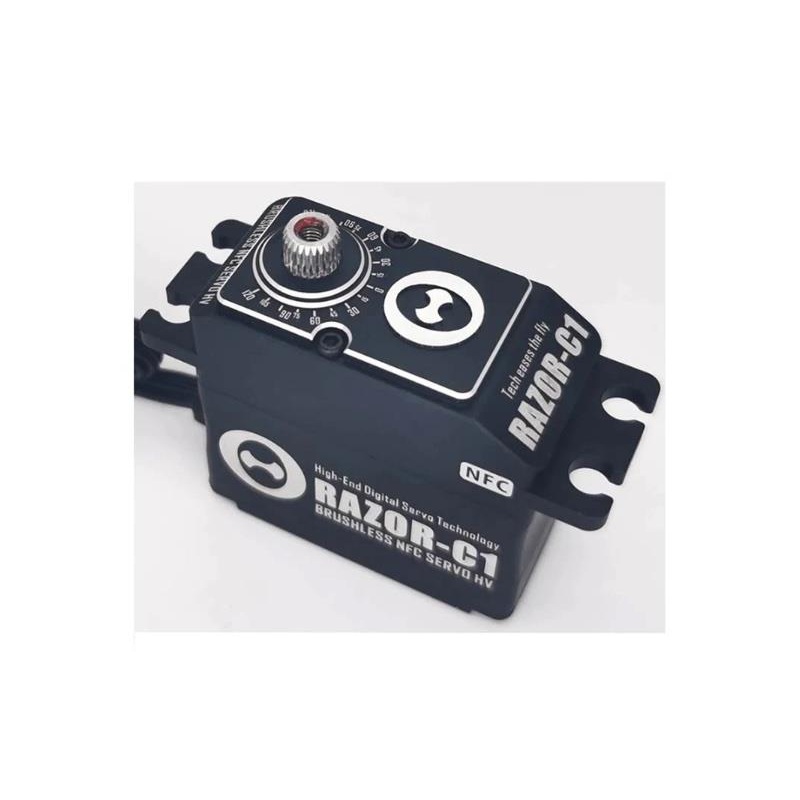

Theta Razor C1 NFC HV Brushless Servo – Black : TS-RC1B
High voltage, standard size brushless 550, 600, 700 and even 800 class helicopters cyclic, airplanes, a great throttle or steering servo on most cars.
(SANWA SSR compatible)
| Voltage (V) | Current (A) |
Speed (s/60) |
Torque (kg*cm) |
|
5.0 |
2.6 |
0.108 |
23 |
|
6.0 |
2.6 |
0.084 |
27 |
|
7.4 |
2.6 |
0.071 |
34 |
|
8.4 |
2.6 |
0.060 |
36 |
|
5.0 |
5.0 |
0.102 |
32 |
|
6.0 |
5.0 |
0.079 |
37 |
|
7.4 |
5.0 |
0.067 |
44 |
|
8.4 |
5.0 |
0.056 |
48 |
Defaults:
- Centre Pulse Width: 1520
- Voltage: 8.4V
Accessories included:
- 4x Mounting screws
- 1x Servo horn screw
- 4x Brass Ferrules
- 4x Rubber mounting grommets
- 1x Half arm with 19mm hole (3mm hole)
- 1x Half arm with 14mm, 17mm and 20mm holes
- 1x Double arm with 11mm and 18mm holes on one side, and 13mm, 16mm and 19mm holes on the other side
