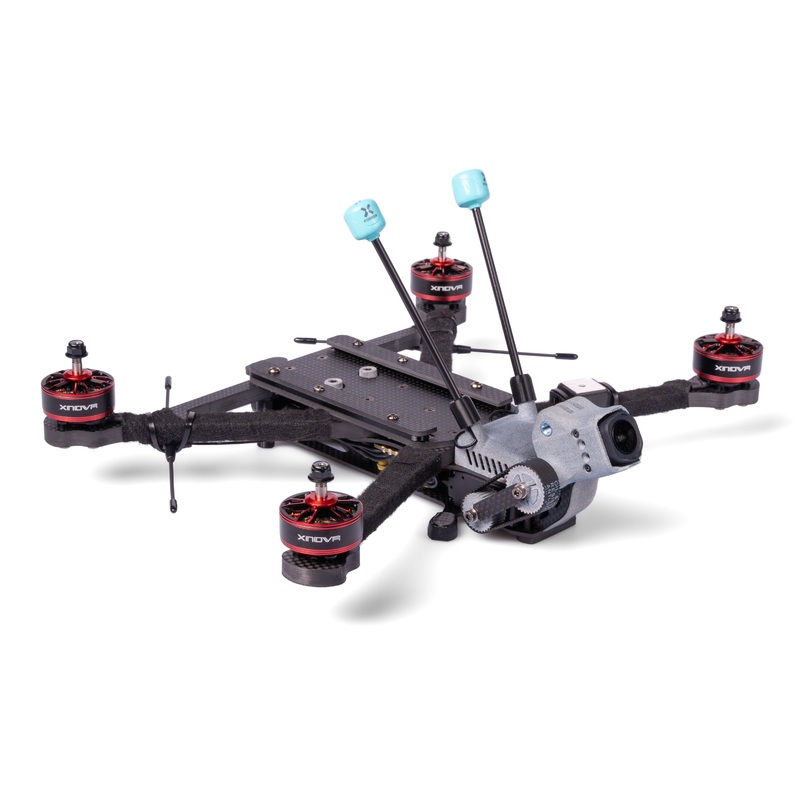

Tilt 7″ Cinematic Frame Kit

Important Information

• Professional assembly recommended

View what else you need (click to expand)

• Hiwonder LDX-218 Servo (required)
• Filament-Tape for Batteries (Scotch 8953 Filament-Tape, 12mm)
• Motors, ESCs, Flight Controller
• 5.8GHz Antennas with 4mm Tube Diameter
• VTX, Receiver, Cameras
• Battery, Propellers
• Headtracking module (optional)

The First True Servo-native Cinematic Platform

TILT redefines professional cinematic FPV as the industry’s first frame engineered from the ground up for integrated servo control. While others retrofit servos as afterthoughts, every millimeter of the TILT was designed around dual-camera adjustability, creating a seamless, purpose-built platform that transforms how professionals capture aerial footage.

Purpose-Built Servo Integration

Servos aren’t new to FPV – but frames truly designed for them are. TILT isn’t another frame with servo mounts bolted on as an afterthought. This is the first complete ecosystem where servo-controlled dual cameras are the foundation, not a modification. Every structural element, every mounting point, every cable path was engineered specifically for real-time camera control. Both FPV and action cameras adjust mid-flight through your flight controller, with full headtracking compatibility (module sold separately) for intuitive camera movements.

Production-Ready Quick Battery System

Time is money on set. That’s why we’ve integrated StrawHatSam’s proven battery plate technology from the LA Mamba platform. This lever-actuated quick-release system enables battery changes in seconds, keeping you airborne and capturing footage while others are still fumbling with straps. Professional productions demand efficiency – the TILT 7″ delivers.

Unmatched Flight Time & Speed

Optimized for the Tattu 4500mAh 6S LiPo, expect flight times consistently exceeding 10 minutes even at high speeds. This exceptional endurance doesn’t sacrifice performance – TILT maintains the agility needed for dynamic cinematography while providing rock-solid stability for those critical hero shots.

Compact Design, Perfect Balance

Despite its 7-inch prop configuration, TILT achieves a remarkably compact footprint with center of gravity perfectly aligned in the prop line. This precision engineering delivers flight characteristics that feel more like a nimble 6-inch quad, offering unprecedented maneuverability for tight spaces and complex camera movements. Professional pilots will immediately notice the responsive, locked-in feel that makes executing precise shots effortless.

Flight Performance with Interlock Max

Building on the proven Interlock system from it’sFPV’s ERA series, we’ve scaled up to the Interlock Max – a robust arm-locking mechanism that eliminates vibrations. This innovative single-screw design not only simplifies maintenance but delivers the jello-free footage that separates professional work from amateur attempts.

Uncompromising Build Quality

Every component reflects our commitment to excellence. Premium carbon fiber construction, 12.9 hardened steel hardware, and meticulous attention to detail ensure your investment performs flawlessly season after season. When your reputation depends on getting the shot, accept nothing less than the best.

Future-Ready: Live Transmission Capability

Coming Soon: Dedicated Live Transmission Kits for DJI SDR and DJI Transmission systems, opening new possibilities for live broadcasting and real-time monitoring. Stay ahead of the curve with a platform designed to evolve with industry demands.

What’s included?

Carbon Fiber Parts:

• 2x Arm DC Front
• 2x Arm DC Back
• 1x Topplate Back
• 1x Topplate Front
• 1x Bottomplate
• 1x Stiffner Back
• 1x Carbon Spring
• 1x Interlock Max
• 1x Bearing Stiffner
• 1x Battery Release Handle
• 1x Gimbal Bracket Right
• 1x Gimbal Bracket Left
• 1x Rail Top Right
• 1x Rail Top Left
• 1x Front Bracket
• 4x Lipo Plate

Hardware:

• 1x GEAR 30 tooth
• 1x GEAR 36 tooth
• 1x Belt

Printed Parts:

• 2x Battery Nubbin
• 1x Gimbal Head
• 1x Gimbal Bumper
• 1x VTX Cover
• 1x Spring Spacer
• 2x Antenna Clip
• 1x AS150 Holder Top + Bottom
• 1x XT90 Socket Holder
• 2x Foot Front
• 2x Foot Back

Hardware Parts:

M2 Screws:

• • 8x M2x4mm Countersunk 12.9
  • 2x M2x6mm Countersunk 12.9

M3 Screws:

• • 2x M3x8mm Countersunk 12.9
  • 6x M3x10mm Countersunk 12.9
  • 1x M3x12mm Countersunk 12.9
  • 9x M3x15mm Countersunk 12.9
  • 4x M3x20mm Countersunk 12.9
  • 2x M3x30mm Countersunk 12.9
  • 16x M3x12mm Caphead 12.9
  • 1x M3x15mm Caphead 12.9
  • 1x M3x25mm Caphead 12.9
  • 7x M3x8mm Buttonhead 12.9
  • 6x M3x10mm Buttonhead 12.9
  • 2x M3x12mm Buttonhead 12.9

Nuts & Washers:

• • 6x M3 Hex Nut V2A
  • 16x M3 Pressnut V2A
  • 4x M3 Washer V2A
  • 1x M3 Cone Washer AW6061

Standoffs:

• • 4x M3x20mm Standoff Aluminium (Black)
  • 2x M3x30mm Standoff Aluminium (Black)
  • 1x M3x35mm Standoff Aluminium (Black)

Threaded Inserts:

• • 2x M2 Threaded Insert
  • 2x M3 Threaded Insert
  • 1x M5 Threaded Insert

Bearings:

• • 2x Bearing Type 1 (63)
  • 2x Bearing Type 2 (105)
