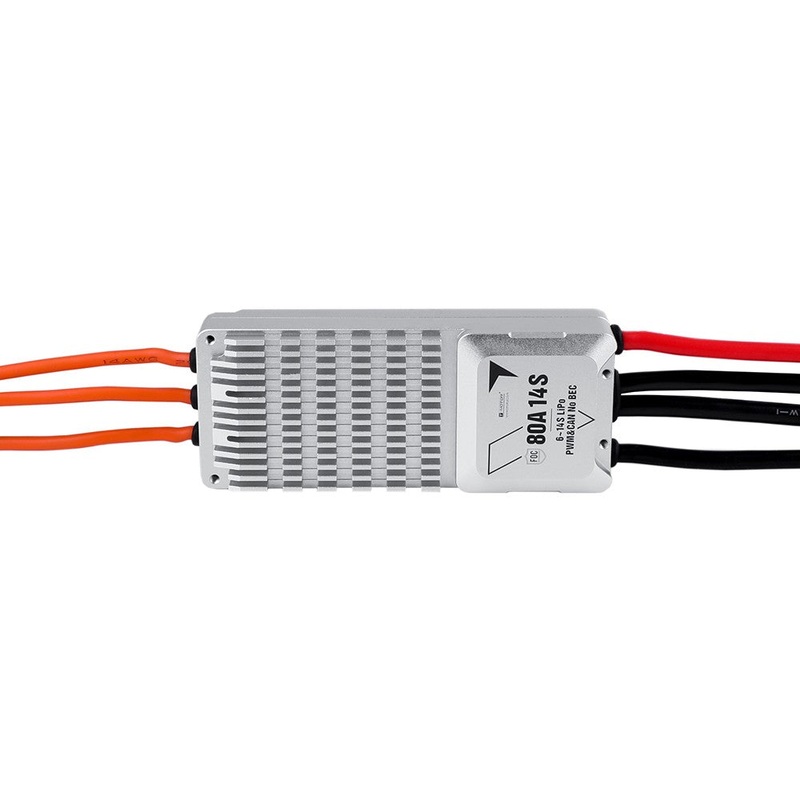

This ESC (Electronic Speed Controller) has a fixed-pitch propeller function.
FOC Vector Control
Utilizing FOC (Field-Oriented Control) technology, it achieves more refined and precise control, ensuring high stability of power output.
Fast Response
Precise Control
Efficient Driving
Low Noise Operation
Supports CAN2.0 Protocol
This ESC supports the DroneCAN 2.0 protocol, is fully compatible with the PX4 flight control system, and offers plug-and-play convenience.
Remote Monitoring
Remote, real-time monitoring of the ESC’s operating status through the flight control system ensures the system is always in optimal working condition.
Easy Setup
Users do not need to perform complicated settings, saving time and effort, making the device easier to operate.
Specification
| Model No. | V80A 14S | Power Cable | Silicone wire-red/black -12AWG-180mm |
| Size | 84*35*19mm (L*W*H) | Signal Cable | Shielded cables-Black-OD4.2-5C -450mm-JP-3P*2-Black blank white-green yellow gray |
| Weight(Incl. cables) | 110g | Encoder cables | Shielded cables-Black-24AWG-5C -450mm-M6 aviation connector |
| Motor Cable | Silicone wire-orange-14AWG-110mm | Protocol | PWM/CAN |
| Support Voltage | 18~60V (6~14S) | BEC | NO |
| Continuous Current | 40A | Throttle Pos. Range | 1040-1940 |
| Peak Current(<10s) | 80A | Throttle Refresh Frequency | 50-500HZ |
| Standby Consumption | 50mA@48V | Throttle Response Speed | 300ms |
The product list is as follows:
