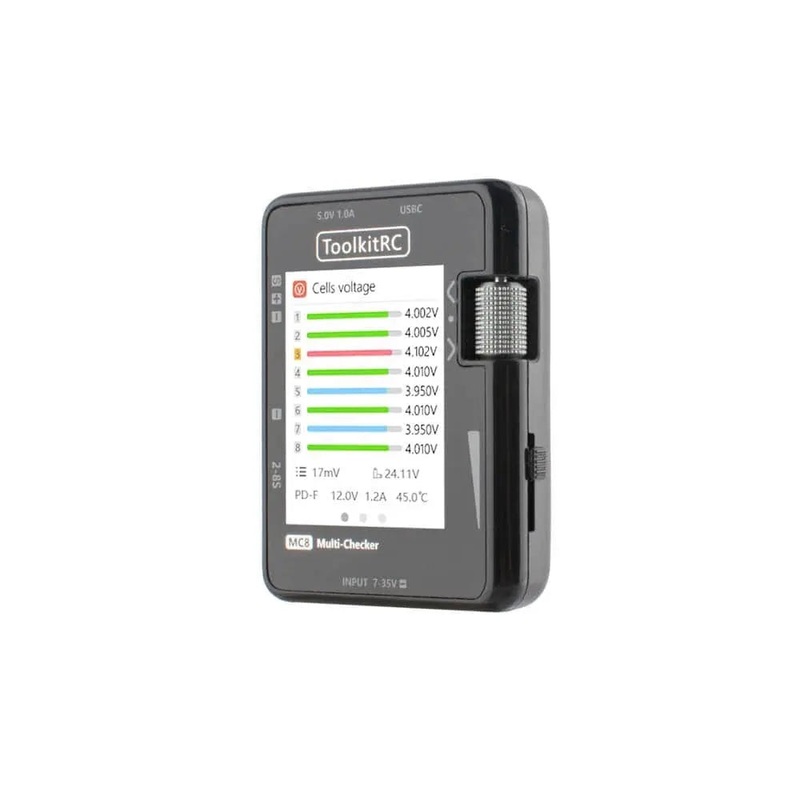

ToolkitRC Battery Multi Checker MC8

The latest from Toolkit is a feature-packed multi-purpose cell checker with a big, bright, easy-to-read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCs, and use your LiPos for device charging (up to 20W PD)! Check the video below to see what it can do!

Features:

• Large Color Screen
• Battery Status Display
• PWM/PPM/SBUS Readout
• PWM Output
• One Touch Battery Balancer
• PD Fast Charging
• Metal Roller UI Control
• Innovative Slider Output Control

Specification:-

• LCD: 2 IPS 320240
• Dimensions: 68x50x15mm
• Weight: 50g

Checker

• Main Input port: XT60 7.0-35.0V
• Balance input: 0.5V-5.0V Lixx 2-8S
• Signal port input: <6.0V
• Balance current: MAX 60mA @2-8S
• Balance accuracy: <0.005V @ 4.2V
• USB-A output: [email protected] firmware upgrade
• USB-C output: 5.0V-12.0V @MAX 20W
• USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

Measurer

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

Output

• PWM: 1000-2000us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

Package Includes:

• 1 Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
