Feature

• Full 3K imported premium quality and structurally rigid carbon fiber
• All Carbon Fiber with chamfered and round edge
• All Carbon plates cut with TransTEC Soft Coating Crafts
• super durable 6mm arms with quick switch
• 3mm Hybrid bottom plate with soft mount hole
• 2.5mm thickness ultra light roof plate
• 2mm thickness top plate ensures stable arms
• Aerospace application TransTEC 7075Alu standsoff for incredibly solid
• High precise 3D print camera holder and new design to protect your cam
• Two alternative antenna fixed way for more convenience installation
• 304 stainless steel custom insert nut for more stable frame
• YFS first class 12.9 screws to secure whole frame
• 20x20mm and 30x30mm FC mount hole
• Large internal space possible for 3 board FC stack
• Allowing to fit micro camera.
• Wheelbase 224mm
• TransTEC Damping System , unique design soft rubber ring and custom 7075 limit screws, let the rubber remains same force

Suggestion

• Battery: 4S-6S Lipo 1000mah – 1800mah
• Camera: 19mm Micro size
• FC/ESC: 30.5*30.5 / 20*20
• Prop : 5inch

Packing list

• 4 x 6mm removable Arms
• 1 x 3mm Bottom plate
• 2 x 2mm Top plates
• 1 x 2.5mm Roof plate
• M3x12 * 4
• M3x16 * 4
• M2.5×8 * 2
• M2.5 Metal Nut * 2
• M3 Metal Nut * 4
• M3 Insert Nut * 4
• M3x8 Countersunk screws * 4
• M3 7075 Limit Red screws * 4
• TPU camera mount * 1
• TPU SMA antenna mount * 1
• TPU lollipop antenna mount * 1
• Battery strap 2pcs
• Battery pad 1pcs

Specifications

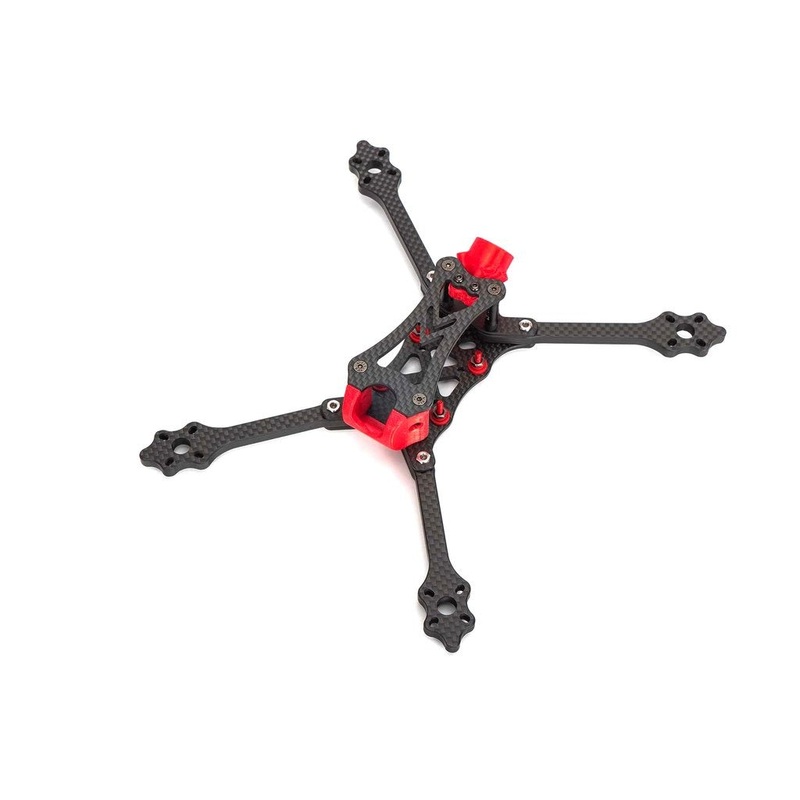

• Item: TransTEC laser S 224 frame
• Wheelbase: 224mm (hybrid)
• Weight: 82g
• Body: separate body
• Plate material: full 3K carbon fiber
• Arm thickness: 6mm (8mm wide)
• Bottom plate thickness: 3mm
• Roof/top plate thickness: 2.5& 2mm
• Standoff: custom7075 aluminum alloy
• Screws: 12.9 first class YFS Taiwan screw
• Free gift: red camera and antenna tpu
• Feature: Champion Racing Frame
• Package dim: 19*14*3mm

Package weight: 164g
