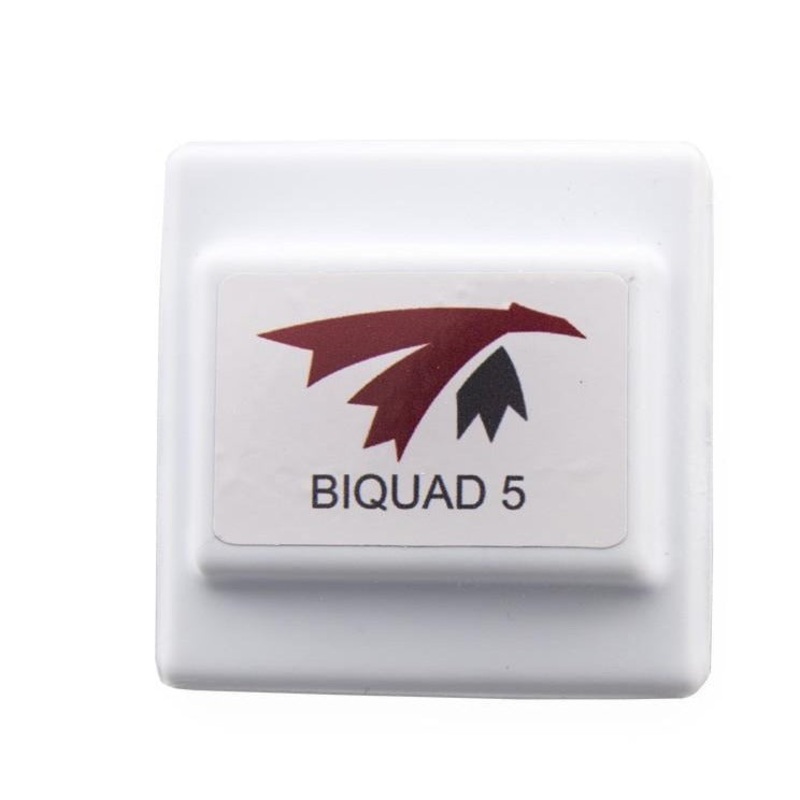

Abiquad? Thebiquadis the linear equivalent to the crosshair, with its clean radiation pattern and great efficiency. Weof courseadded our own twist to it by stretching its bandwidth to cover the whole 5GHz ISM band. Thismakeit usable with both digital and analog systems. Mount it right on your goggles whether they havetopor side SMA connection, the includedlow-loss semi-flexible extensionhave them covered.
Specs
- Frequency: 5-6GHz
- Gain: 9.5 dBi
- Linear polarization
- Beam-width*: 110deg
- Beam-width @-3dB**: 65deg.
- Connector: SMA male
- Dimension: 2.1×2.1×0.5
- Included 5cm low-loss semi-flexible extension.
*Coverage where reception is at least equivalent to anomni.
**Coverage where at least 70% of the max range is obtained.
