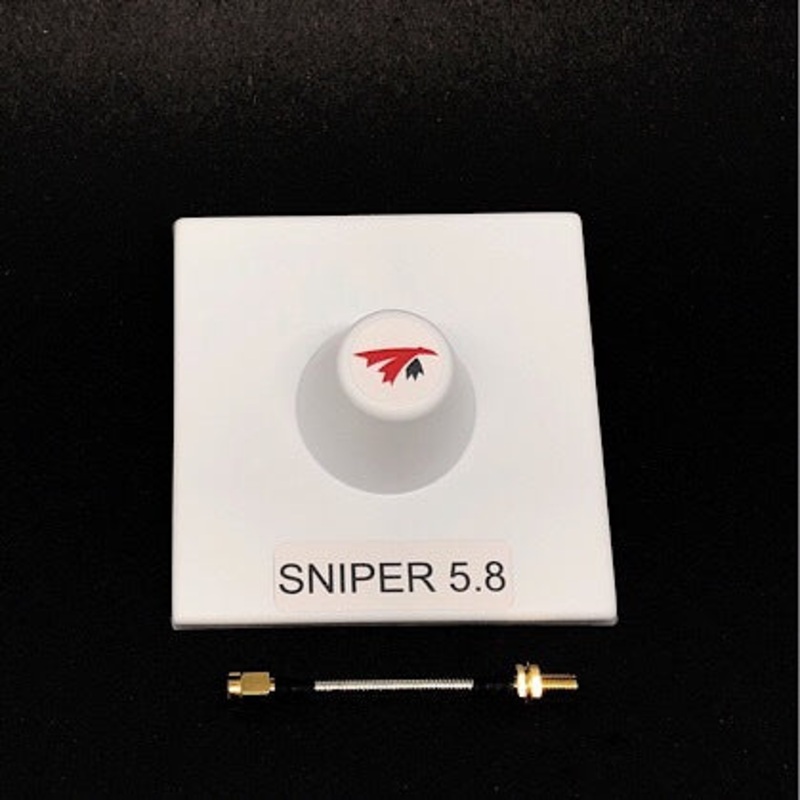

TRUERC Sniper 5.8Ghz Long Range Antenna

Leading the way in antennas technologies for FPV, we have developed the Sniper. It consists of modifying a X-AIR to add a set of director elements. Same principle you find in a yagi, but keeping the circular properties, add an extra dimension to the equation. In terms, the director elements act as a lens and raises gain by 3.5dB to reach 13.5dBi on a single antenna.Include alow-loss semi-flexible extensionfor easy positioning.

Specs

• Frequency: 5.6-5.95GHz
• Gain: 13.5 dBic
• Axial Ratio: 0.9 (excellent)
• Beam-width*: 80deg
• Beam-width @-3dB**: 45deg.
• Connector: SMA
• Dimensions: 3.6×3.6×2.5

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
