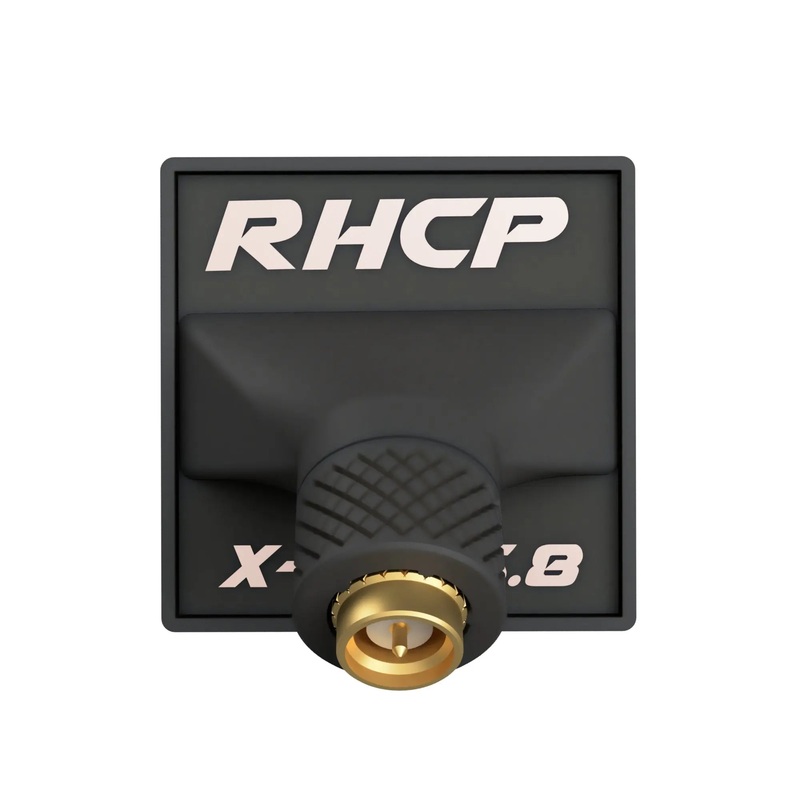

TrueRC X-AIR 5.8 Mk. II (45deg)

TrueRC X-AIR 5.8 Mk. II (45deg)

Description

Now with build-in 45deg angled SMA connection! No more adapter needed to fit them on diversity analog modules, no more collision with nearby SMA.

The X-AIR 5.8 Mk. II is our latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, theres no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment.

Specs

• Bandwidth:5.1GHz-6.7GHz
• Gain:9.5-10.5 dBic
• Polarization:RHCP or LHCP
• Beam-width (H and V)*:120deg
• Beam-width @-3dB(H and V)**:68deg.
• Connector:SMA or RP-SMA male
• Dimension:32 x 32 x 39mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
