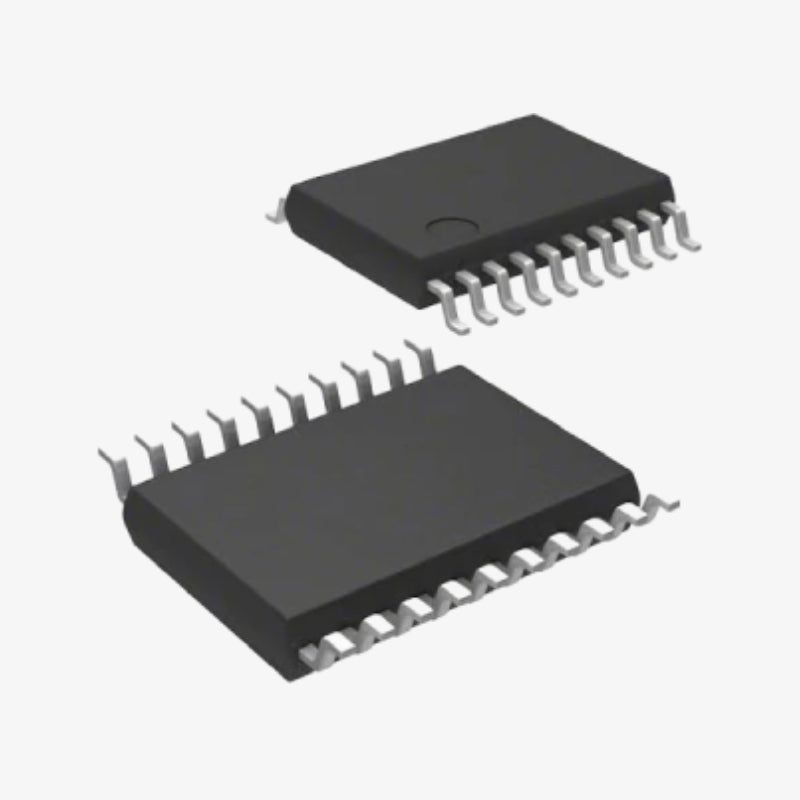

TXS0108EPWR 8-Bit Bidirectional Level Shifter IC (TI) – TSSOP-20 SMD Package

TheTXS0108EPWR is an 8-bit bidirectional voltage-level translator IC designed by Texas Instruments. It provides seamless voltage shifting between different logic levels ranging from 1.2V to 3.6V on A-port and 1.65V to 5.5V on B-port, making it ideal for interfacing devices with different voltage requirements. Its auto-direction sensing feature eliminates the need for a direction control pin, simplifying design. This compact TSSOP-20 SMD package is widely used in microcontroller, FPGA, I2C, SPI, and UART interfacing applications.

Features of TXS0108EPWR 8-Bit Level Shifter IC:

1. 8-bit bidirectional voltage-level translator
2. Supports wide voltage range: 1.2V to 3.6V (A-port) and 1.65V to 5.5V (B-port)
3. Auto-direction sensing no need for direction control pin
4. Suitable for I2C, SPI, UART, and GPIO level shifting
5. Low power consumption and high-speed operation
6. ESD protection: 15kV (HBM)
7. Compact TSSOP-20 SMD package for space-saving PCB designs
8. RoHS compliant and industry-standard reliability

Specifications of TXS0108EPWR IC:

• Model: TXS0108EPWR
• Function: 8-bit bidirectional voltage level shifter
• Voltage Range A-Port: 1.2V 3.6V
• Voltage Range B-Port: 1.65V 5.5V
• Data Rate: 60Mbps (Push-pull), 2Mbps (Open-drain)
• Package: TSSOP-20 SMD
• Operating Temperature: -40C to +85C
• Manufacturer: Texas Instruments (TI)

Package Includes:

1 TXS0108EPWR 8-Bit Bidirectional Level Shifter IC TSSOP-20 SMD
