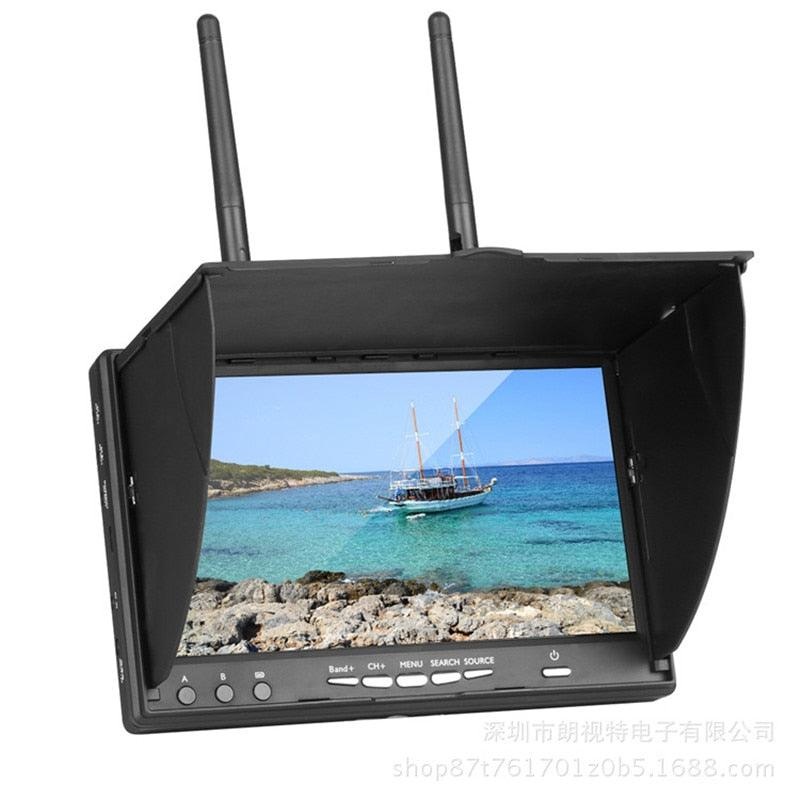

uuustore 7 Inch HD FPV Monitor – High Quality LCD5802S LS5802S 5802D 40CH Raceband 5.8G 7 Inch Diversity Receiver HD Monitor with Build-in Battery for FPV Drone

uuustore 7 Inch HD FPV Monitor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Unit Type: Set

Tool Supplies: Other

Technical parameters: Value 3

Size: As Show

Remote Control Peripherals/Devices: Other

Recommend Age: 12+y

RC Parts & Accs: Other

Package Weight: 0.888kg (1.96lb.)

Package Size: 30cm x 14cm x 5cm (11.81in x 5.51in x 1.97in)

Origin: Mainland China

Model Number: LCD5802S

Material: Composite Material

Four-wheel Drive Attributes: Other

For Vehicle Type: Helicopters

Brand Name: uuustore

High Quality uuustore LCD5802S LS5802S 5802 40CH Raceband 5.8G 7 Inch Diversity Receiver HD Monitor with Build-in Battery

Remark:

LCD5802S is without dvr

LCD5802D iswith DVR

Description:
Brand Name: uuustore

Item Name: LCD5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery:2000mAH/7.4V
Work status OSD display:RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Screen size:7
Screen type:TFT LCD Screen/long life. LED backlight
Resolution: 800*480
Brightness:600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage:DC 7~16V
Power Consumption:max 650 mA @12V
Battery charging current:850mA @12V ( max )
Working temperature:-10~+ 65
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)

Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small. light weight. durable
5 bandss and total 40 Channels
Built-in battery . easy to carry and outdoor use
A key to automatic signal search.Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can’t receive 2 different channels at the same time

bands and Channel selection

CH	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
GROUP
A	5865MHZ	5845MHZ	5825MHZ	5805MHZ	5785MHZ	5765MHZ	5745MHZ	5725MHZ
B	5733MHZ	5752MHZ	5771MHZ	5790MHZ	5809MHZ	5828MHZ	5847MHZ	5866MHZ
C	5705MHZ	5685MHZ	5665MHZ	5645MHZ	5885MHZ	5905MHZ	5925MHZ	5945MHZ
D	5740MHZ	5760MHZ	5780MHZ	5800MHZ	5820MHZ	5840MHZ	5860MHZ	5880MHZ
R	5658MHZ	5695MHZ	5732MHZ	5769MHZ	5806MHZ	5843MHZ	5880MHZ	5917MHZ

Package Included:
1 x 7″ LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger

‘
