Overview
The VCI HOBBY 2207 Pro 2110KV YUKI Edition is a high-performance FPV brushless motor designed for professional freestyle and racing pilots. Engineered with a stator size of 22x7mm, a durable M5 shaft, and optimized for 6S (24V) LiPo setups, it delivers over 1172g thrust, 1206W peak power, and class-leading thermal and mechanical reliability. This motor is perfectly matched with propellers like GEMFAN 51466, GF F4-3B, and HQ S5.1×3.8x3B.
Specifications
| Parameter | Value |
|---|---|
| KV | 2110KV |
| Configuration | 12S14P |
| Internal Resistance | 54m |
| Shaft Diameter | M5 |
| Shaft Length | 12.2mm |
| Stator Size | 22mm x 7mm |
| Motor Dimensions | 27mm x 31.4mm |
| Peak Current | 50.27A |
| Idle Current (10V) | 1.0A |
| Max Instantaneous Power | 1206.48W |
| Cable | 20AWG 150mm |
| Weight (Incl. Cable) | 33.2g |
| Voltage Supported | 6S (24V) |
Performance Test Summary (Static)
| Propeller | Max Thrust (g) | Max Power (W) | Efficiency Peak (g/W) | Temp (C) |
|---|---|---|---|---|
| GF F3-3B | 1970g | 1087.92W | 4.05 @ 30% throttle | 112 |
| GF F4-3B | 1958g | 1163.28W | 3.78 @ 30% throttle | 142 |
| GF 51466-3B | 1767g | 1172.88W | 3.22 @ 30% throttle | 140 |
| HQ S5.1*3.8-3B | 1767g | 1172.88W | 3.69 @ 30% throttle | 140 |
-
All propellers tested at 6S 24V
-
Motor temperature reflects spindle temp at full throttle 0100% cycle
Key Features
-
Japanese N52SH arc magnets for high torque and thermal resistance
-
12N14P architecture for stable, smooth acceleration
-
Efficient heat dissipation design with durable aluminum housing
-
Ultra-lightweight at only 33.2g with cable
-
Ideal for 5-inch racing drones using GEMFAN 51466 and similar tri-blade props
-
CW and CCW threading available
Application
Perfect for 5-inch FPV freestyle, racing drones, and DIY builds. The 2110KV version offers a powerful balance of speed and control for freestyle loops, cinematic acro, or competitive race tracks.
Package Includes
-

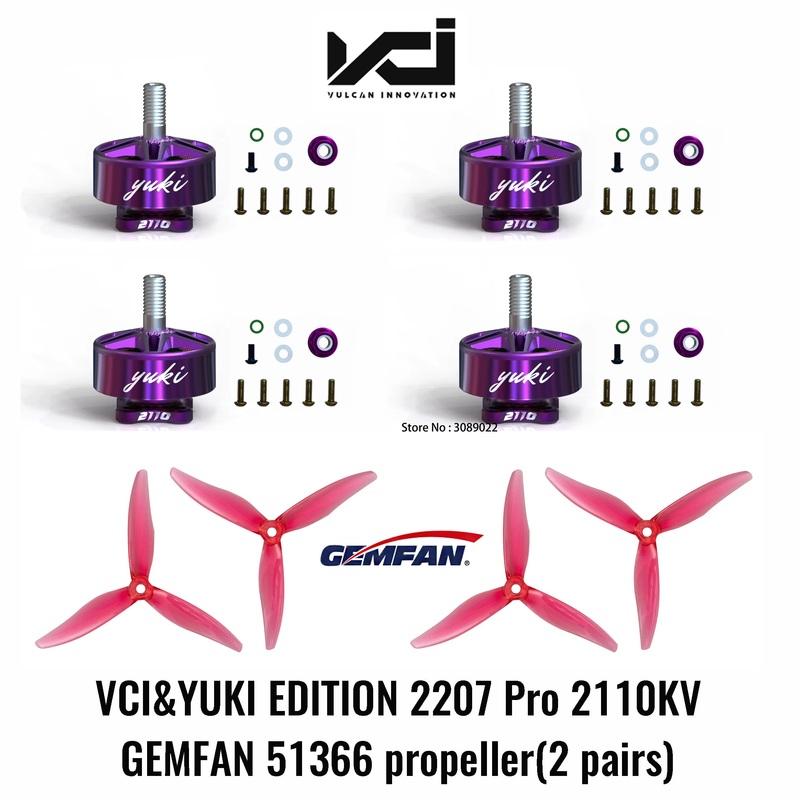

1x VCI HOBBY 2207 Pro 2110KV YUKI Edition Brushless Motor (CW or CCW)
-
1x M5 Nut
-
4x Mounting Screws
VCI 2207 PRO-2110KV YUKI EDITION motor specs: 2110KV, N52SH magnets, 12S14P config, 54m resistance. Testing data includes voltage, throttle, current, thrust, efficiency, power, RPM, and temperature for various propellers.
