ViewPro U2 Gimbal Camera for Drone – Ultra Light Dual EO Sensors FHD 1080P Camera With Ai Object Tracking

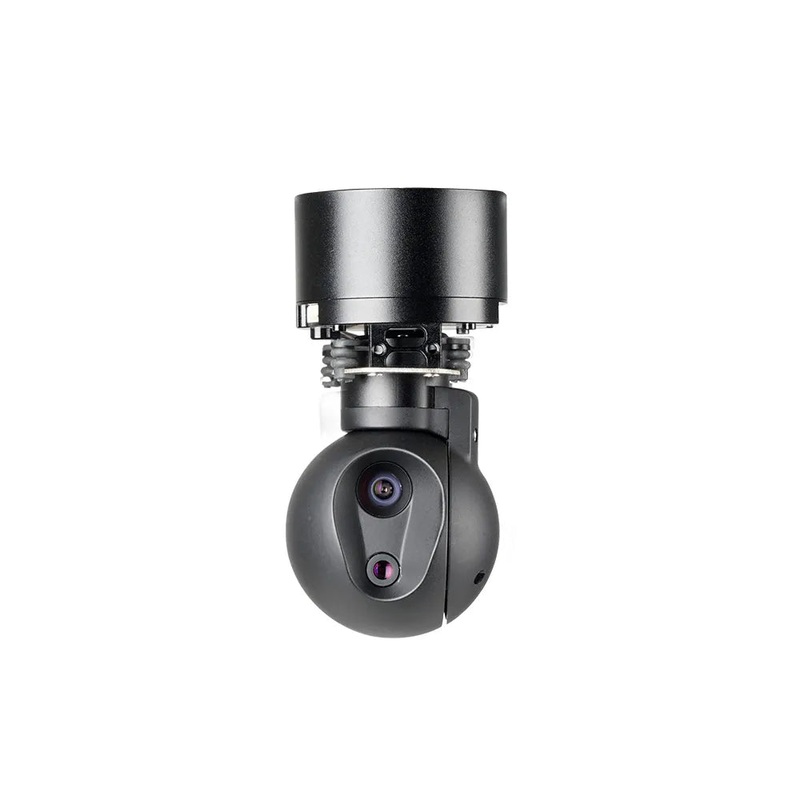

ViewPro U2 Gimbal Camera

The ViewPro U2 is an ultra-lightweight, compact, and versatile gimbal camera designed for drone applications requiring high-resolution imaging, precise tracking, and reliable performance in various scenarios. Weighing only 77g, this camera is ideal for small drone platforms, offering enhanced functionality and portability.

ViewPro U2 Gimbal Camera Key Features

1. Dual EO Sensors:

   • Sensor 1: 2.4mm prime lens, delivering a wide Field of View (FOV) of 98.5 66.3, ideal for broader scene coverage.
   • Sensor 2: 10.36mm prime lens with a narrow FOV of 30 17.1, perfect for detailed zoomed-in imaging.
   • Both sensors provide FHD 1080P resolution at 30fps for crisp, clear visuals in diverse conditions.

2. Advanced Hybrid Zoom:

   • Features a 12.5x hybrid zoom (4.2x optical and 3x digital), allowing detailed observation of distant objects while maintaining exceptional clarity.

3. AI Object Tracking:

   • Built-in AI capabilities enable precise object detection and tracking. The system can recognize and follow humans and vehicles with minimal object contrast of 5%, ensuring stable and accurate tracking even in dynamic environments.

4. Compact and Lightweight Design:

   • Measuring 39 39 81.1mm and weighing 80g, the U2 is one of the lightest gimbal cameras in its class. The ultra-light design reduces drone payload, improving flight time and efficiency.

5. 2-Axis Gimbal Stability:

   • A high-precision gimbal with stability accuracy of 0.2mrad ensures smooth and stable footage under various flight conditions. It supports pitch angles from -30 to +115 and yaw/pan angles of 145.

6. Seamless Video Output and Control:

   • Offers IP (RTSP) output at 1080p 30fps (H.264 encoding) for live streaming.
   • Control via TTL or TCP ensures compatibility with various drone control systems.

ViewPro U2 Gimbal Camera Specifications

Hardware Parameter
Working voltage	12~16V
Dynamic current	200~700mA @ 12V
Power consumption	Average 2.4W, Max 8.4W
Working environment temp.	-20~+50
Output	IP (RTSP 1080p 30fps H264)
Control method	TTL / TCP
Gimbal Spec
Controllable Range	Pitch/Tilt: -30115, Yaw/Pan: 145
Stability precision	0.2mrad
Maximum angular velocity	30/S
One-key to center
EO Camera Spec 1
Resolution	1920*1080 @30fps
Focus Length	2.4mm
Angle of View	98.5*66.3
EO Camera Spec 2
Resolution	1920*1080 @30fps
Focus Length	10.36mm
Angle of View	30*17.1
Hybrid Zoom	12.5x (Optical zoom 4.2x, digital zoom 3x )
EO Camera Object Tracking
Minimum object contrast	5%
Minimum object size	16*16 pixel
Maximum object size	128*128 pixel
Tracking speedMan	32 pixel/frame
Tracking speed (Car)	48 pixel/frame
Object memory time	100 frames
Packing Information
N.W.	80g
Product meas.	39*39*81.1mm
Accessories	UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion

Enhanced Imaging Capabilities

1. Picture-in-Picture (PIP) Mode:

   • Simultaneous display of both wide and narrow FOVs, ensuring better situational awareness during operations.

2. High-Resolution Imaging:

   • Provides 2MP Full HD 1080P visuals, ensuring crisp image quality for aerial inspections, surveillance, and mapping.

3. OSD Information Overlay:

   • Displays critical information such as gimbal orientation, camera settings, and real-time object tracking coordinates, streamlining operations.

Applications

The ViewPro U2 is tailored for a variety of professional drone applications:

• Surveillance: Wide FOV for monitoring large areas with enhanced object detection.
• Inspection: Precision zoom for close-up inspections of infrastructure, wind turbines, and agriculture.
• Mapping: Accurate imaging for geospatial data collection.
• Search and Rescue: Real-time object tracking for locating vehicles or individuals in dynamic environments.

Why Choose the U2 Gimbal Camera?

Combining advanced imaging technology, robust AI capabilities, and an ultra-lightweight design, the ViewPro U2 Gimbal Camera offers unmatched performance for professional drone operators. Its versatility and compactness make it the go-to solution for applications demanding precision, efficiency, and reliability.

Enhance your drone’s capabilities with the ViewPro U2 compact power, amplified potential.

ViewPro U2 Gimbal Camera Details

ViewPro U2 gimbal features an ultra-lightweight micro prime lens, dual electro-optical sensors, and FHD 1080p object tracking camera for smooth and stable video recording.

ViewPro U2 gimbal product features a compact 2-axis object design, with capabilities for tracking and zooming using its dual FOV (Field of View) and hybrid zoom system.

ViewPro U2 Gimbal: A lightweight, 2-axis gimbal camera with dual electro-optical sensors. It features two FOVs: 98.59×66.39mm (wide) and 10.36mm x 17.19mm (narrow). The camera has a prime lens with FHD 1080p focus length. It supports object tracking, hybrid zoom, and is designed for small drones.

143.9mm Camera, FHD 1080p 2MP Pixel at 30fps, High Resolution, CFPRT 1920×1080 at 30fps

The ViewPro U2 gimbal stabilizes your OSD 387878172 camera, providing smooth footage and precise control.

The ViewPro U2 Gimbal offers video output via IP with RTSP protocol at 30fps resolution and control methods including TTL and TCP.

Stabilized 4K capture for surveillance inspection applications, featuring advanced gimbal technology for smooth video and photo results

Dimension: 38mm x 9mm x 35.2mm. Package includes USB to TTL cable, Ethernet cable, power cable, and TTL cable. Additional accessories include damping ball (I50mm) with M2.0 screws @39mm and a 200mm extension arm.
