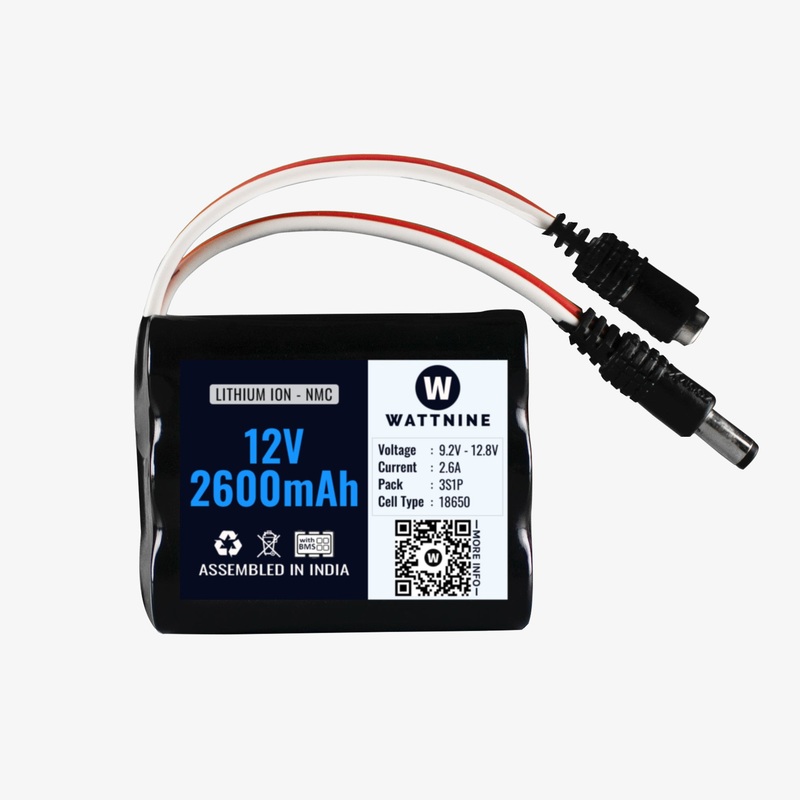

This Li-ion Rechargeable Battery Pack has a nominal voltage of 11.1 volts and is a 3s battery pack. This battery pack contains three cells connected in series, giving it a capacity of2600mAh. The battery packhas a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.
Recommended Charger -Charging Time
- 12.6v 1.5A Lithium Battery Charger– 1Hr 45Min.
- 12.6v 2A Li-ion Battery Charger– 1Hr 10Min.
Datasheet / Specification
Specification
- Charging Voltage- 12.6V
- Charging Current- 1.3A
- Nominal Pack Voltage- 11.1V
- Discharge Current- Tested for 1A, 2A
- Max. Disharge Current – 2.6A
- Charging Method: DC Male Female connectors.
Protection (Included BMS)
- Short Circuit Protection
- Overvoltage cut-off- 12.8
- Undervoltage cut-off- 9.2V
Certifications & Warranty:
- BIS Approved: Yes
- BIS Registration Number: R-84005630
- Warranty: 3 Years
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking – Vehicle Tracking – Asset Tracking
- Wifi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Solar Lights
- Robotics and RC cars
- MusicPlayers and Audio Systems
Warranty Terms:
This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
