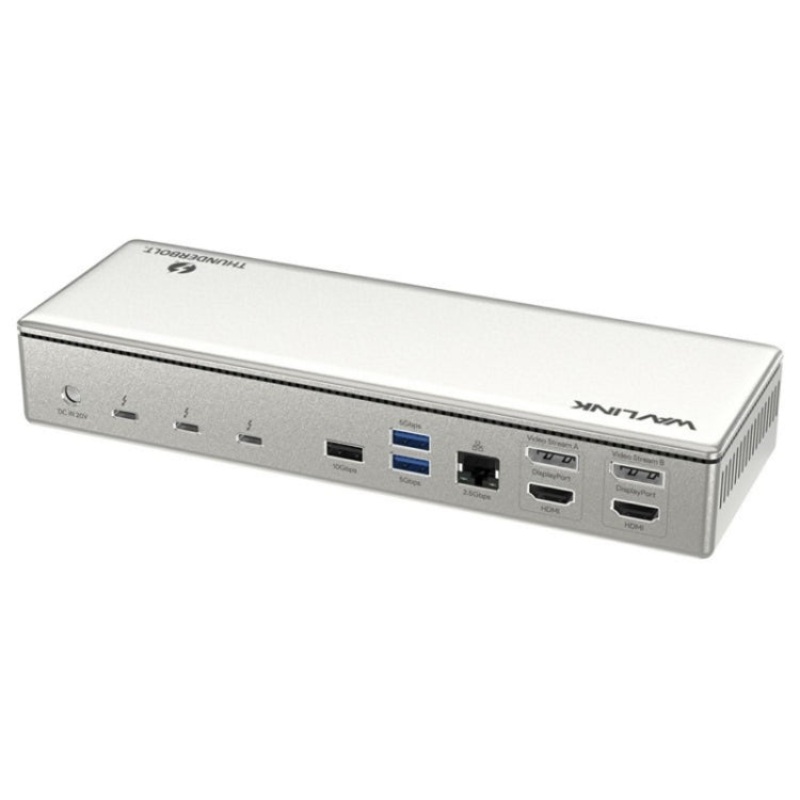

The WAVLINK UTD41 PRO is a 15-in-1 Thunderbolt 4 docking station designed to expand connectivity options for laptops and desktops. It is suitable for users requiring multiple video outputs, high-speed data transfer, and reliable network connectivity.
- Model: WL-UTD41Pro
- Ports:
- Front: 1 x 3.5mm Audio/Mic jack
- 1 x SD Card Slot (312MB/s)
- 1 x USB-A (10Gbps, 7.5W)
- 1 x Upstream Thunderbolt 4 Port (40Gbps, 98W)
- 1 x Power Switch
- Back: 1 x DC In (20V/10A, 200W)
- 3 x Downstream Thunderbolt 4 Ports (40Gbps, PD15W, 8K)
- 1 x USB-A (10Gbps)
- 2 x USB-A (5Gbps)
- 1 x RJ45 Ethernet (2.5Gbps)
- 2 x Video Streams (4K DP + 4K HD)
- Power Supply: DC20V/10A, 200W
- Dimensions: 24cm x 8.1cm x 3.9cm (9.4in x 3.3in x 1.5in)
- Weight: 501g (17.7oz)
- Cable Lengths:
- Thunderbolt 4 Cable: 80cm (31.5 in)
- Power Adapter Cable (Plug End): 150cm (59 in)
- Power Adapter Cable (Round End): 110cm (43 in)
- Enclosure Material: Aluminum Alloy
- Status Indicator Light: Red
- Compatibility:
- Supports dual 4K@60Hz or single 8K@30Hz displays
- Backward compatible with 1000/100/10 Mbps networks
- SD V4.0 card reader supports UHS-II speeds, backward compatible with SDXC, SDHC, and standard SD cards
- Security: Kensington lock slot included
- Notes:
- Three Thunderbolt 4 ports support up to two displays simultaneously
- Only one port can be used for video stream configuration
- Macs with M1/M2 chips can output only one video from Thunderbolt 4 ports
- Download latest drivers from displaylink.com for HD/DP ports
- Keep power connection active when using the dock
- 8K display support requires USB-C port to support DP1.4
- Performance may be limited for non-Thunderbolt 3/4 USB-C laptops
- Dock does not support HDCP
- Thunderbolt 4 ports and one USB 3.1 quick-charge port support offline charging
