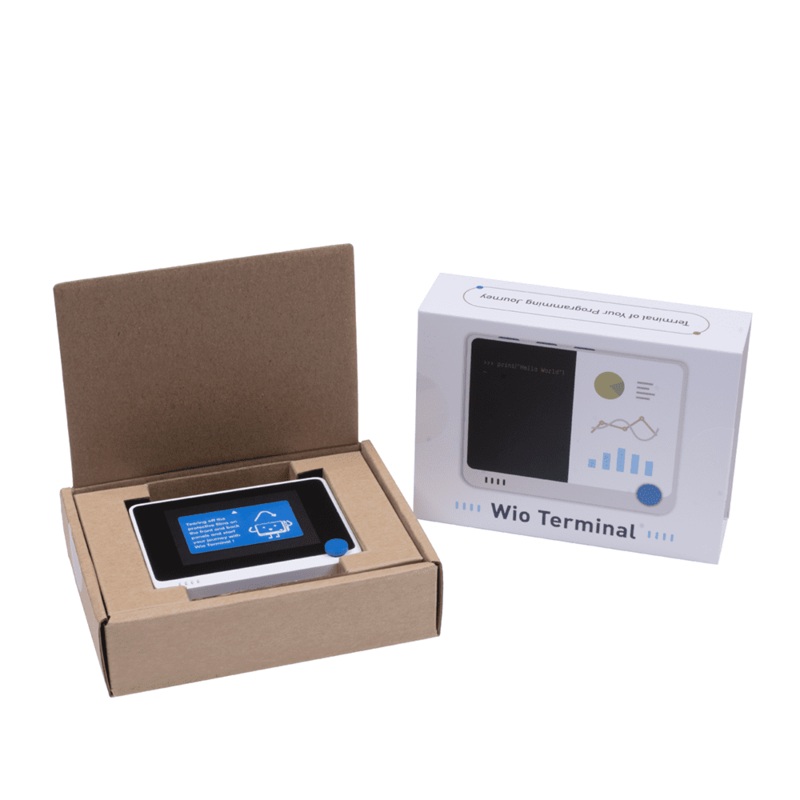

Wio Terminal Development Board ATSAMD51 Core with Realtek RTL8720DN

Wio Terminal Development Board ATSAMD51 Core with Realtek RTL8720DN

Wio Terminalis anATSAMD51-basedmicrocontroller with wireless connectivity supported byRealtek RTL8720DN. Its CPU speed runs at120MHz (Boost up to 200MHz).Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects.

Wio Terminal is more of a complete system equipped with a Screen + Development Board + Input/Output Interface + Enclosure, making it an efficient and Product-Ready Product.The Wio Terminal itself is equipped witha 2.4 LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm).

With Wio Terminal, you can:

• Sense and tag the Real-World data withover 300 Groves created by Seeed
• Use a 100% open-source Hardware in a pythonic way
• Build your program interpreter starting from 90% with LCD screen and compact enclosure

Features

• All-in-one development board
• Equipped with an ATSAMD51-based microcontroller
• Wireless connectivity supported by Realtek RTL8720DN
• Compatible with Arduino and MicroPython
• 2.4” LCD screen
• Onboard IMU, microphone, buzzer, microSD card slot, light sensor, and built-in magnets
• It can be used for various projects and interfacing with the real world
• Works with the standard Arduino IDE to develop applications
• Versatile board for DIY IoT projects, education, and more
