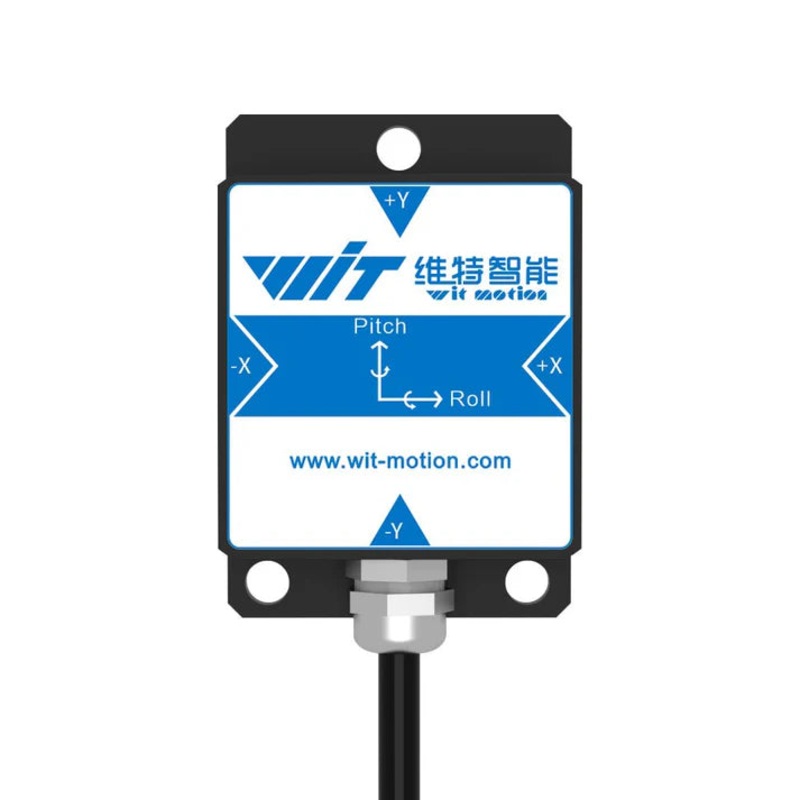

WitMotion SINET Dual-Axis AHRS Tilt Inclinometer, 0.1 Accuracy, 0.01 Resolution, Alarm, RS232/RS485/TTL, IP67 (936V)

Overview

WitMotion SINET is a compact, industrial dual-axis AHRS inclinometer with a built-in tilt alarm. It measures X/Y tilt from 0 to 90, provides switching (voltage) alarm output with a configurable threshold (default 10), and communicates via TTL/RS232 (RS485 optional per spec banner). The rugged aluminum alloy housing is IP67 sealed and survives high shock and vibration for outdoor machinery, vehicles, lifts, and antenna positioning. Power is a wide 936 V DC input.

Key Features

• Dual-axis tilt monitoring (X, Y), 0~90

• High precision: full-range 0.1 accuracy; 0.01 resolution

• Fast response: up to 100 Hz (DC response)

• User-settable alarm threshold (default 10); switch output, default level high (PC software adjustable)

• Wide supply: DC 936 V, typical 12/24 V

• Ruggedized: IP67, aluminum shell, anti-vibration 10 grms (101000 Hz), impact 3500 g/0.5 ms (3/axis)

• Wide temperature: 40 +85 C operation

• Small size: 55 36.8 24 mm; four M4 mounting screws

• Quick start: 0.5 s power-on time

Product Performance Indicators

Parameter	Condition	Value	Unit
Measuring range		90
Measuring axes		X, Y
Alarm axes		X, Y
Frequency response	DC response	100	Hz
Resolution	Broadband 5 Hz	0.01
Accuracy	40+85 C	0.1
Long-term stability	40+85 C	0.1
Power-on start time		0.5	s
Output signal	Settings port / output	TTL or RS232 / switch output
Average working hours		55,000	h
Impact resistance		3500 g, 0.5 ms, 3/axis
Anti-vibration		10 grms, 101000 Hz
Insulation resistance		100 k
Waterproof level		IP67
Cable		1.0 m, shielded, wear/oil/low-temp resistant
Weight	w/o box	55 g

Electrical Indicators

Parameter	Condition	Min	Typ	Max	Unit
Supply voltage		9	12 / 24	36	V
Working current			60		mA
Normally-closed max current (alarm)			1000		mA
Operating temperature		40		+85	C
Storage temperature		55		+100	C

Mechanical

• Connector / lead: fixed 1 m cable

• Protection class: IP67

• Shell material: Aluminum alloy, matte anodized

• Installation: Four M4 screws

• Dimensions: 55 36.8 24 mm (mounting holes 4.2 mm; lengthwise pitch ~47.9 mm)

I/O & Wiring (color function)

1. Red VCC (936 V)

2. Black GND

3. Green RX (device receives)

4. Yellow TX (device transmits)

5. White +X alarm output

6. Gray X alarm output

7. Blue +Y alarm output

8. Brown Y alarm output

9. Purple Relative-gesture zero; ground for ~2 s to set current posture to 0

Interfaces: UART TTL or RS232 (ordering option). Alarm default output level is high (software-configurable).

Installation Notes

• Mount the sensor flat and rigid to avoid tilt errors; the mounting surface should be smooth/level.

• Keep the sensor axes parallel to the measured axes (see diagrams).

• May be installed horizontally or vertically (right-hand coordinate rule).

• Use the purple wire zeroing function to calibrate the current position to 0 after installation.

Typical Applications

• High-voltage line/pole monitoring

• Satellite & solar antenna positioning

• Aerial work platforms and vehicle leveling

• Medical equipment angle sensing

• Pan/Tilt mechanisms

• Hydraulic lifts

• General construction machinery angle control and tilt-based monitoring

Details

Electrical indicators: supply voltage 936V, working current 60mA, max current 1000mA, operating temp -40 to +85C, storage temp -55 to +100C.

WitMotion SINET Dual-Axis AHRS offers 90 range, 100 Hz response, 0.01 resolution, IP67 rating, TTL/RS232 output, 55g weight, stability, and impact resistance.

Dual-axis inclination monitoring with 90 range, RS232/RS485/TTL output, 10 default alarm threshold, high vibration resistance, wide voltage input, small size, IP67 protection. Applications include high-voltage wire rod monitoring, satellite antenna positioning, aerial vehicles, medical equipment, hydraulic lifts, and construction machinery angle control.

Electrical indicators: IP67, aluminum shell, M4 screws, 1m lead

Product size: 5547.936.8 mm. Installation direction: sensor surface parallel to target; horizontal or vertical mounting supported with X/Y axis options.

Product installation guide for WitMotion SINET Dual-Axis AHRS, illustrating horizontal and vertical mounting orientations with coordinate axes based on the right-hand rule.

Tilt sensor installation requires a smooth, stable mounting surface. Align the sensor axis parallel to the measured axis to prevent errors. Examples show proper and improper installation techniques.

WitMotion SINET Dual-Axis AHRS electrical connection guide. Includes wiring diagrams for 232 and TTL levels, color-coded pin functions, power supply range (9-36V), and gesture calibration instructions.

Wit Inclinometer software displays X and Y axis angles at 0.000, with alarm settings for positive and negative directions, delay time of 100ms, and options to write configuration or read data.
