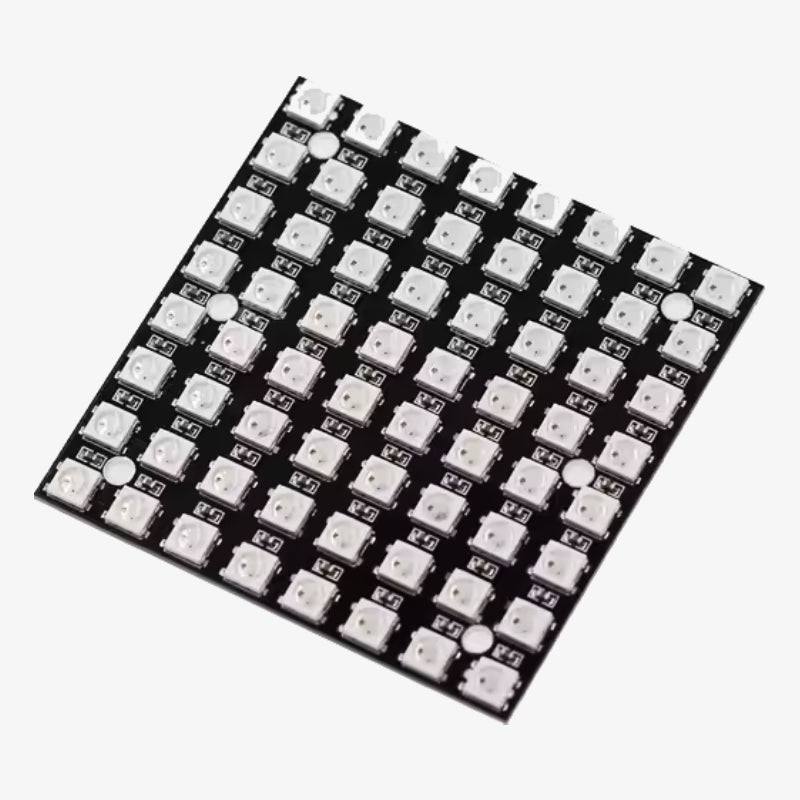

TheWS2812 64-Bit RGB LED Matrix is a high-performance LED display panel consisting of 64 individually addressable WS2812 RGB LEDs arranged in an 88 grid. Each LED integrates a built-in driver and supports full 24-bit color control, allowing for vibrant and dynamic lighting effects. This matrix is ideal for LED animations, display boards, Arduino projects, and decorative lighting.
Features of WS2812 64-Bit RGB LED Matrix:
- 88 grid with 64 WS2812 RGB LEDs, individually addressable.
- Built-in WS2812 driver for easy control with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
- 24-bit color depth, supporting over 16 million colors.
- Single-wire communication protocol for seamless daisy-chaining.
- Compact design suitable for wearable tech, decorations, and gaming projects.
- Operates on 5V DC, low power consumption with high brightness.
Specifications of WS2812 64-Bit RGB LED Matrix:
- LED Type: WS2812B RGB LEDs
- Matrix Size: 88 (64 LEDs)
- Operating Voltage: 5V DC
- Communication Protocol: Single-wire WS2812
- Color Depth: 24-bit (16.7 million colors)
- Power Consumption: Varies based on brightness and colors displayed
- Dimensions: 650mm x 670mm
Package Includes:
1 WS2812 64-Bit RGB LED Matrix
