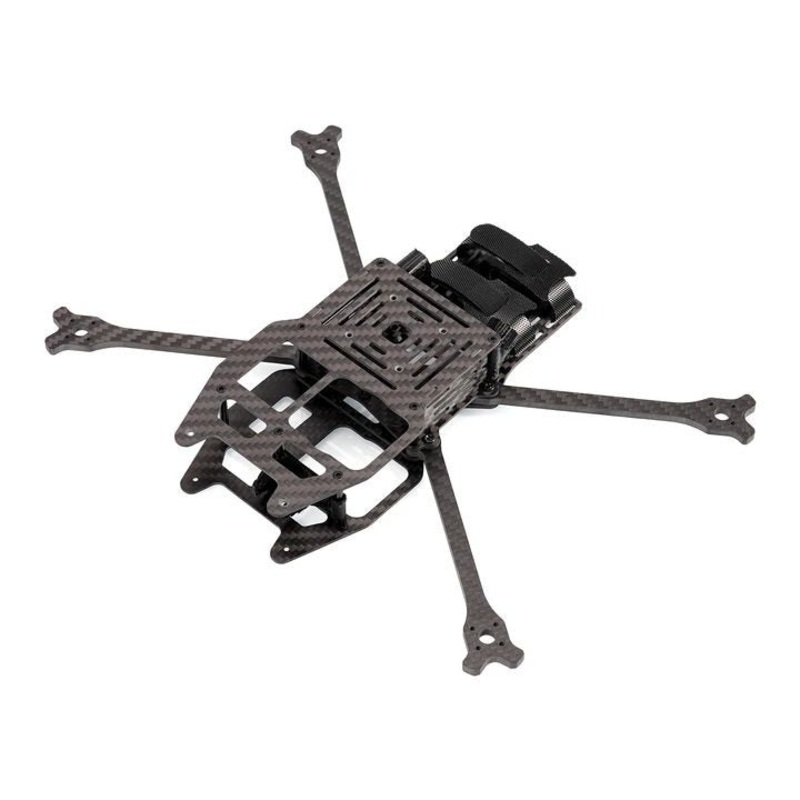

X-Knight 360 Carbon Fiber Frame Kit

X-Knight 360 Carbon Frame Kit is an innovative, versatile and functional design frame that is is designed to work seamlessly with Insta ONE R Camera and GoPro MAX. With the flat designed frame kit and the 360 camera, pilots can capture an aerial 360 video and hide the drone entirely from sight. What’s more, this frame adopts carbon material and becomes the ultimate durability while maintaining minimal weight. Meanwhile,with this kit, pilots can build their own invisible drones likeX-knight 360 FPV QuadcopterandX-knight 360 FPV Quadcopter(HD Digital VTX).
Whether you’re using this frame as a 5″ or 6″ cinematic rigor you’re using its invisible 360-fpv-drone-feature, the frame will be your best choice!

We also release theInsta Sticky Lens Guardto help pilots protect your ONE R camera, bring pilots more choice on flight landing.

Bullet point

• X-Knight 360 Carbon Frame Kitis designed to carry the Insta ONE R and GoPro MAX to capture airborne 360 views and hides the drone entirely from sight, which brings more possibility for aerial photography.
• Everything you need is in this kit, you will find arms, 3D printed mounts, a bottom plate and a top plate, which makes the installation process super easy, brings a better 360 views flight experience.
• With high-quality carbon fiber and aluminum parts, this frame is lightweight only 82.8g, it not only has the ultimate durability but also maintaining minimal weight, brings a precise flying experience.
• Custom made with a flat design, it can give you enough space for the 360 camera, battery and Dji digital VTX. In addition, this flat design can bring an excellent balance between 360 camera and battery, which gives pilots a smoother flight,
• Come with a specially designed BEC board to build a direct chargepower system, not only convenient to power the Insta360 ONE R Camera during the flight, but also reduced a huge weight of the quad, pilots can feela better FPVflying experience.
• X-Knight 360 Carbon Frame Kitcan be compatible with F4 AIO 35A toothpick FC, 1000mAh 4S battery and 2004 brushless motors, which gives pilots the options to go faster while flying with their favorite 360 cams.

Specification

• Item: X-Knight360 Frame Kit
• Material: Carbon Fiber
• Wheelbase: 250mm
• Weight: 82.8g
• Frame height: 30mm
• Top plate thickness: 1.5mm
• Bottom plate thickness: 2mm
• Arm thickness: 4mm
• Battery protected plate thickness: 1.5mm
• Motor mounting hole: 12×12
• FC mounting hole: 26.5mm x 26.5mm

Recommended Parts

• Camera:Insta360 ONE R/ GoPro Max
• Flight Controller:F4 35AAIO Brushless FC/F722 2-6S AIO Brushless FC
• Compatible Propellers:Gemfan 5125 3-Blade props/HQ 5025 3-Blade Props
• Battery:4S 1000mAh Battery
• Motor:2004 3000KV Brushless Motors
• VTXM02 5.8G VTX/A02 25-800mW 5.8G VTX

How to Assemble for Insta ONE R

How to Assemble for GoPro Max

Package

• 2*Insta ONE R Top Plates
• 2*Insta ONE R Bottom Plates
• 4*Arms
• 2*Side Plates
• 4*Screw Bags
• 2*Anti-slip Mats
• 1*XT60 Power cable
• 3*3D Printouts
• 3*Wires

Support GoPro Max Parts

• 2* GoPro MAXTop Plate
• 1 * GoPro MAXBottom Plate
